Voltrra Falcon 8kW IP66 Hybrid Solar Inverter | Dual Output

Description

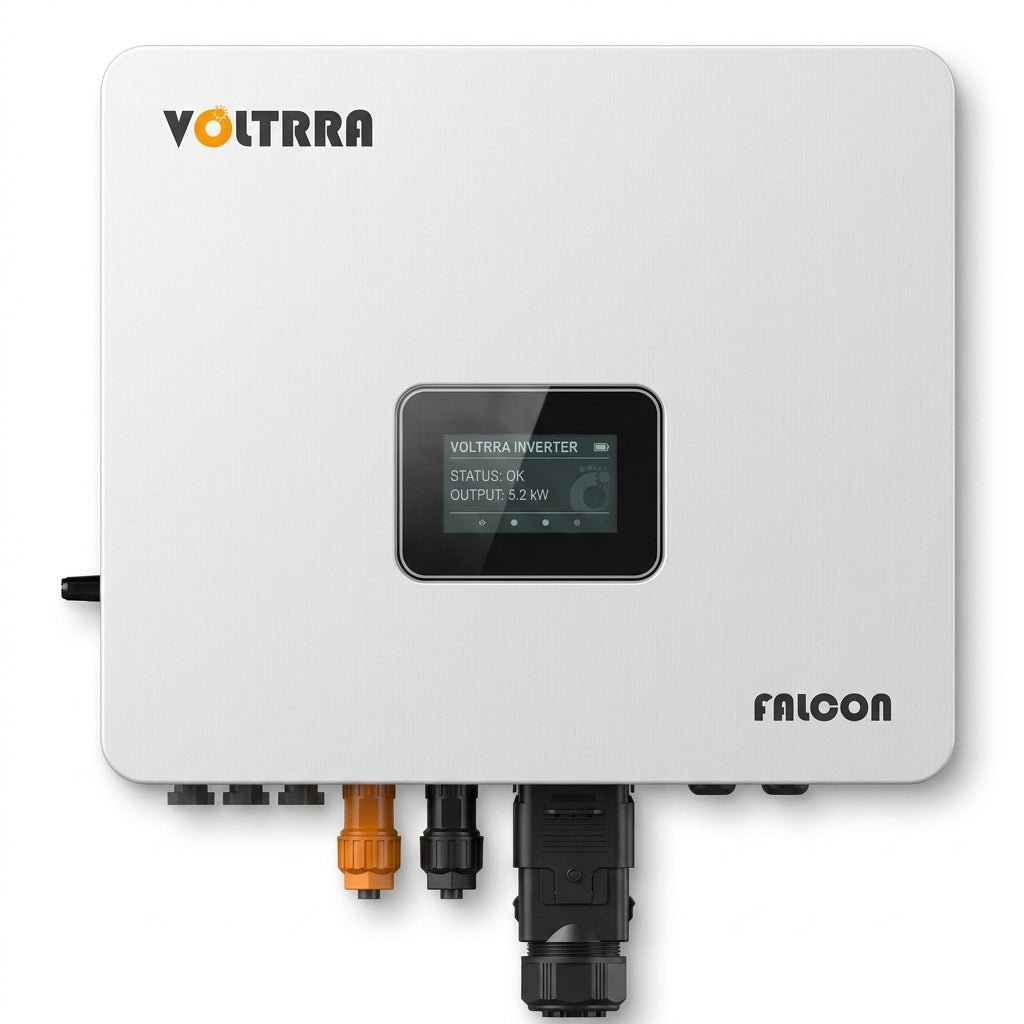

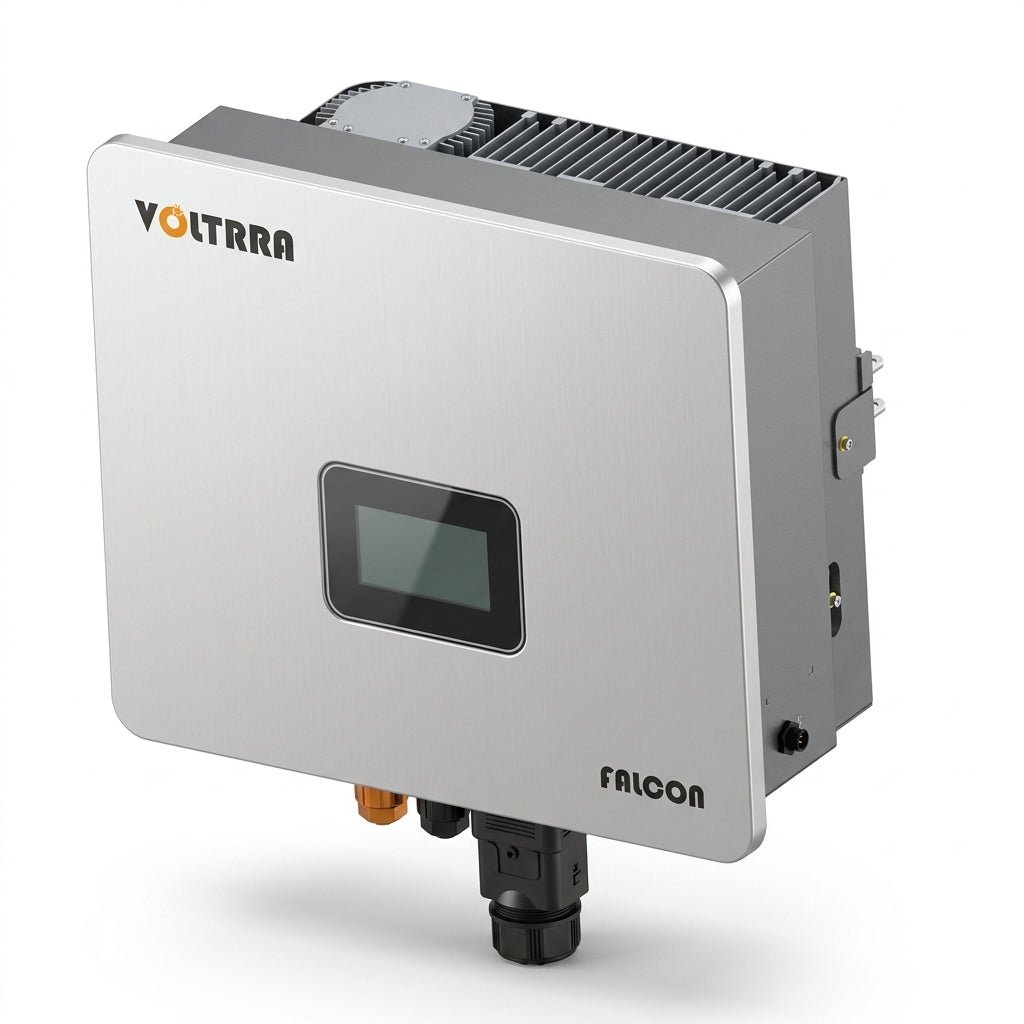

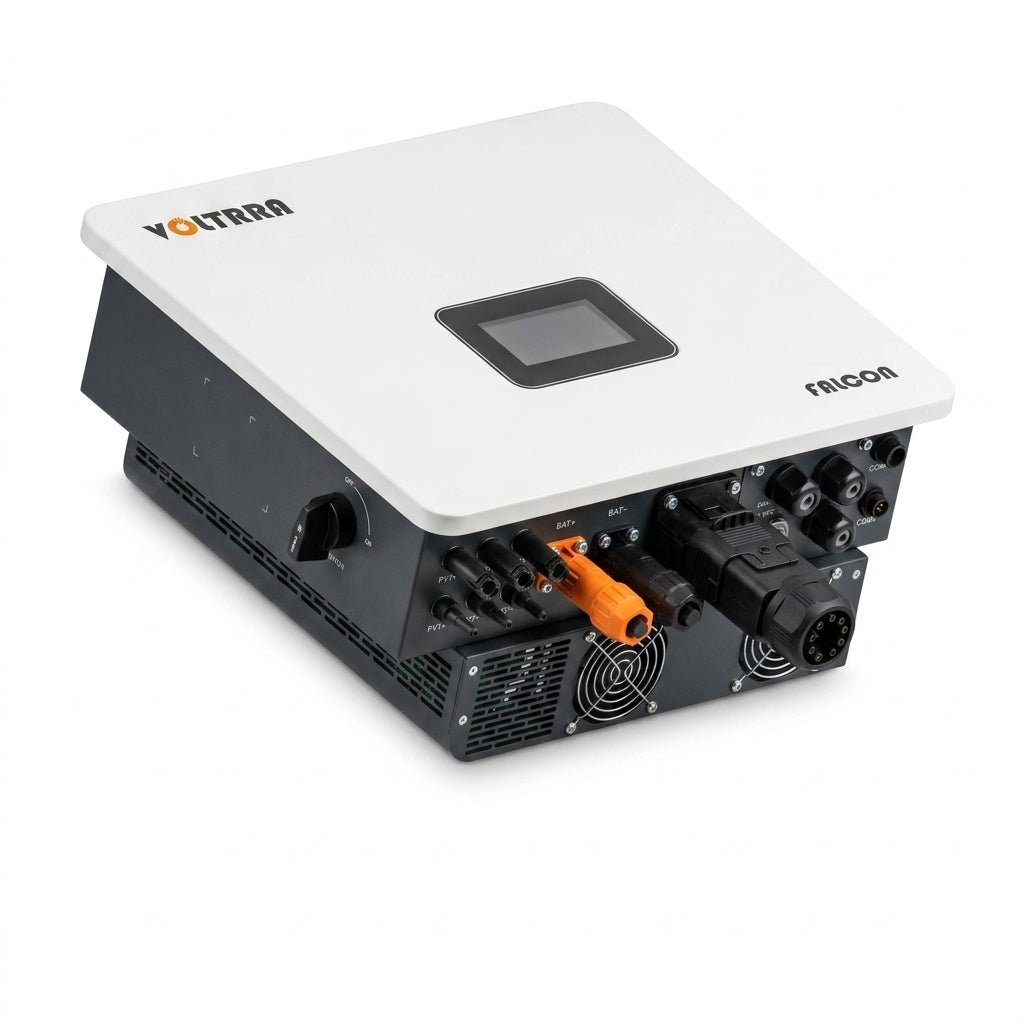

The Voltrra Falcon 8kW Hybrid Solar Inverter is a high-performance solar power solution designed for residential and commercial applications. With an 8kW rated output and up to 8.8kW load support, it efficiently manages demanding electrical loads while maximizing solar energy utilization. Built with IP66 protection, the Voltrra Falcon is designed to withstand dust and water exposure, making it suitable for challenging installation environments. Key Features 8kW Rated Output – Supports loads up to 8.8kW for reliable power delivery. 12kW Maximum PV Input – Handles high solar PV capacity for greater energy generation. 3 Solar MPPTs – Optimizes solar production from multiple PV strings and panel orientations. Dual Output – Enables flexible management of different electrical loads. Battery & Batteryless Operation – Can operate with batteries or directly with solar/grid power, depending on system configuration. IP66 Protection – Provides strong protection against dust and water for reliable outdoor installation. Hybrid Solar Inverter – Suitable for residential, commercial, and backup power applications. Specification Falcon 8kW Rated Output Power 8kW Maximum Apparent Output Power 8.8kVA Maximum PV Input Power Up to 12kW Number of MPPT Trackers 3 Strings per MPPT 2 / 1 / 2 Maximum PV Input Voltage 550V PV Start-Up Voltage 100V MPPT Voltage Range 100–430V Rated PV Input Voltage 360V Maximum Input Current per MPPT 16A Maximum Short-Circuit Current per MPPT 24A Battery Voltage 48V Battery Voltage Range 40–58V Battery Type Lithium-ion / Lead-acid Maximum Charge/Discharge Power 8kW Maximum Charge/Discharge Current 160A Battery Communication CAN Battery Charging Strategy Self-adaption to BMS Rated Backup Voltage 230V Rated Backup Frequency 50/60Hz Backup Output Current 34.8A Maximum Backup AC Current 38.3A Peak Output Power 8.8kW Backup Switch Time <20ms Grid Voltage 230V Grid Voltage Range 176–270V Grid Frequency 50/60Hz Grid Frequency Range 47–61Hz Maximum Grid Passthrough Current 160A Power Factor >1 (0.8 leading to 0.8 lagging) THDi <3% Grid Type L+N+PE Operating Temperature -25°C to +60°C Relative Humidity 0–95%, non-condensing Operating Altitude 0–2,000m, derating above 2,000m Protection Rating IP66 Topology Non-isolated Surge Protection DC Type III / AC Type III Cooling Fan Cooling Noise Emission <55dB Dimensions 486 × 231 × 530mm Weight 25.8kg Communication RS485 / CAN Display LCD PV Connection MC4
