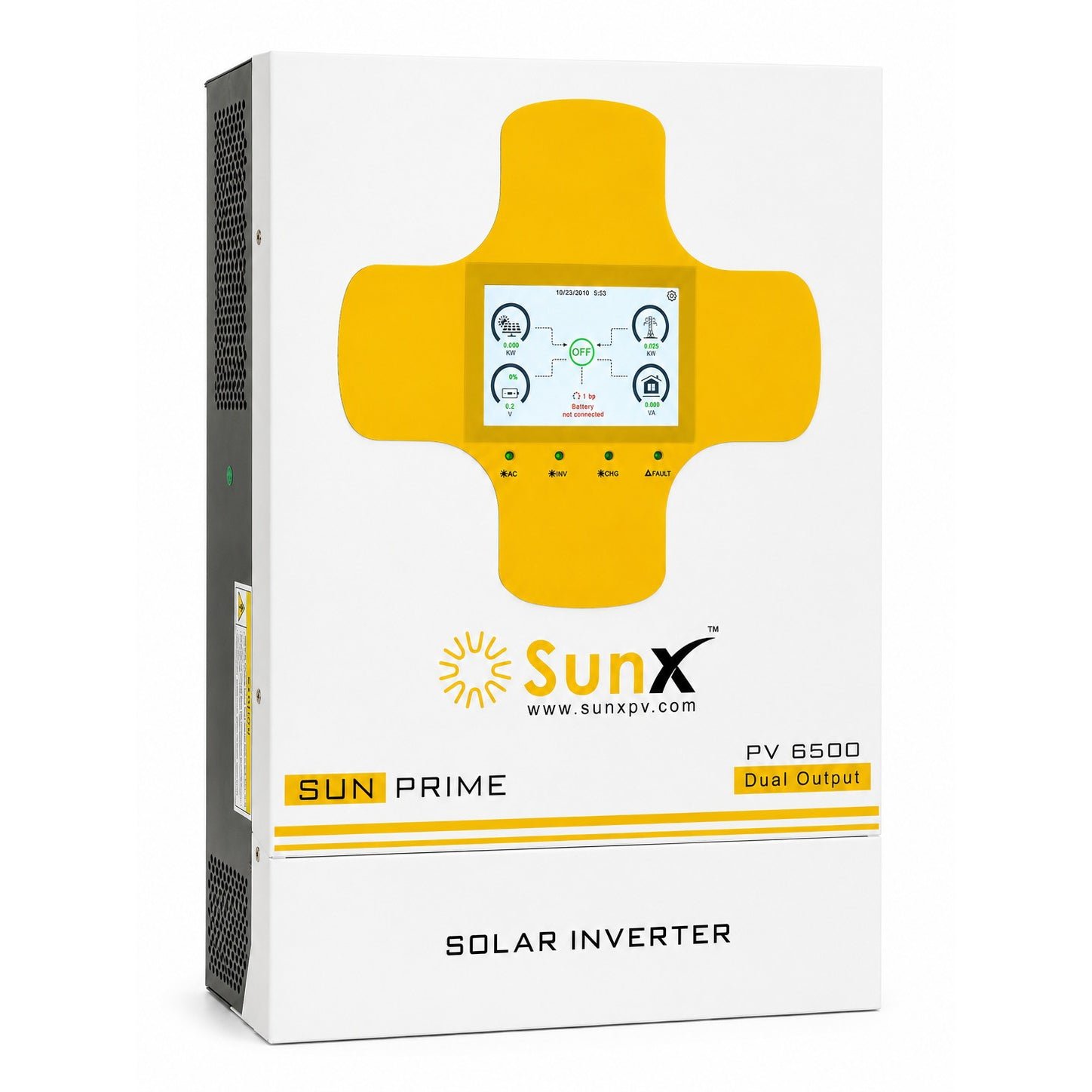

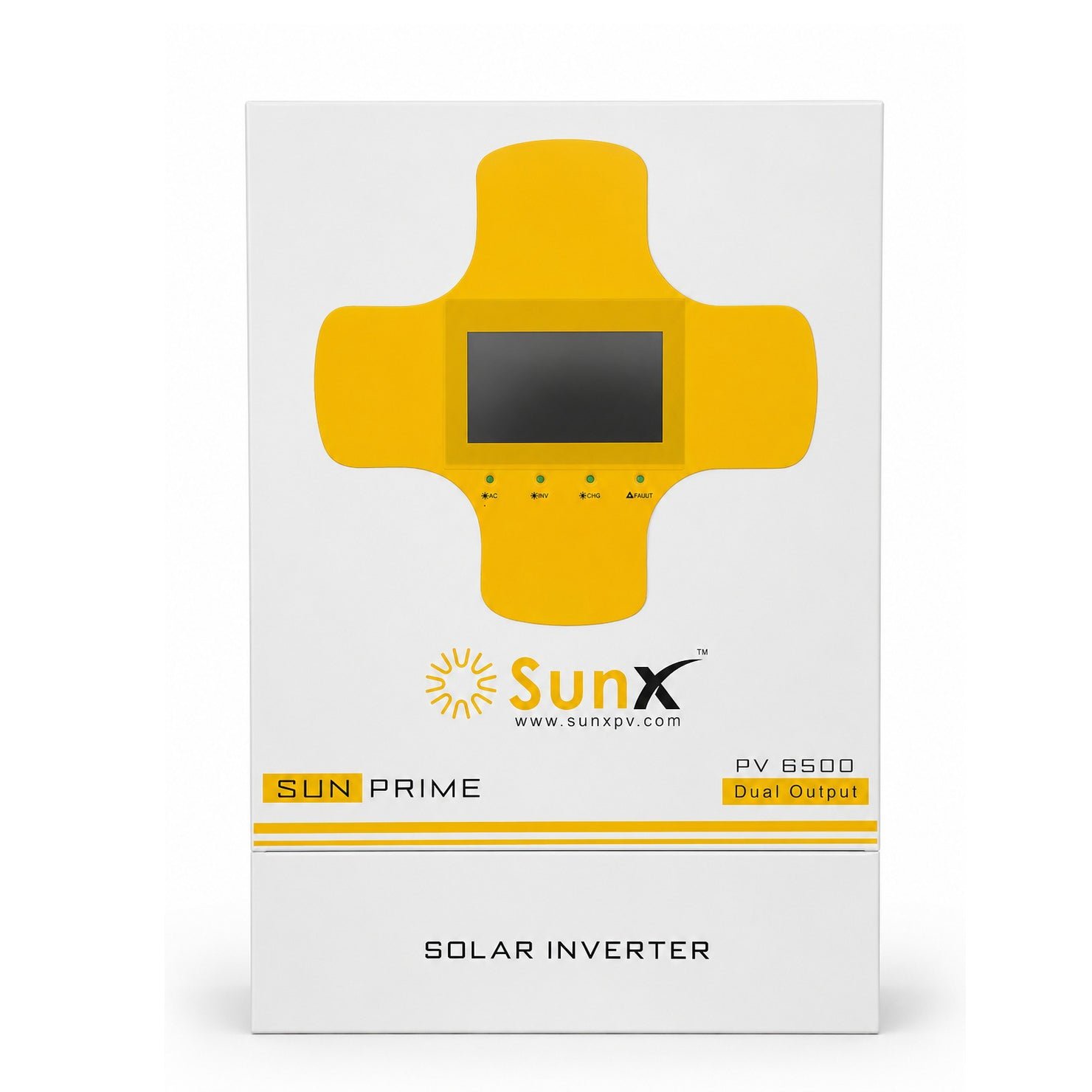

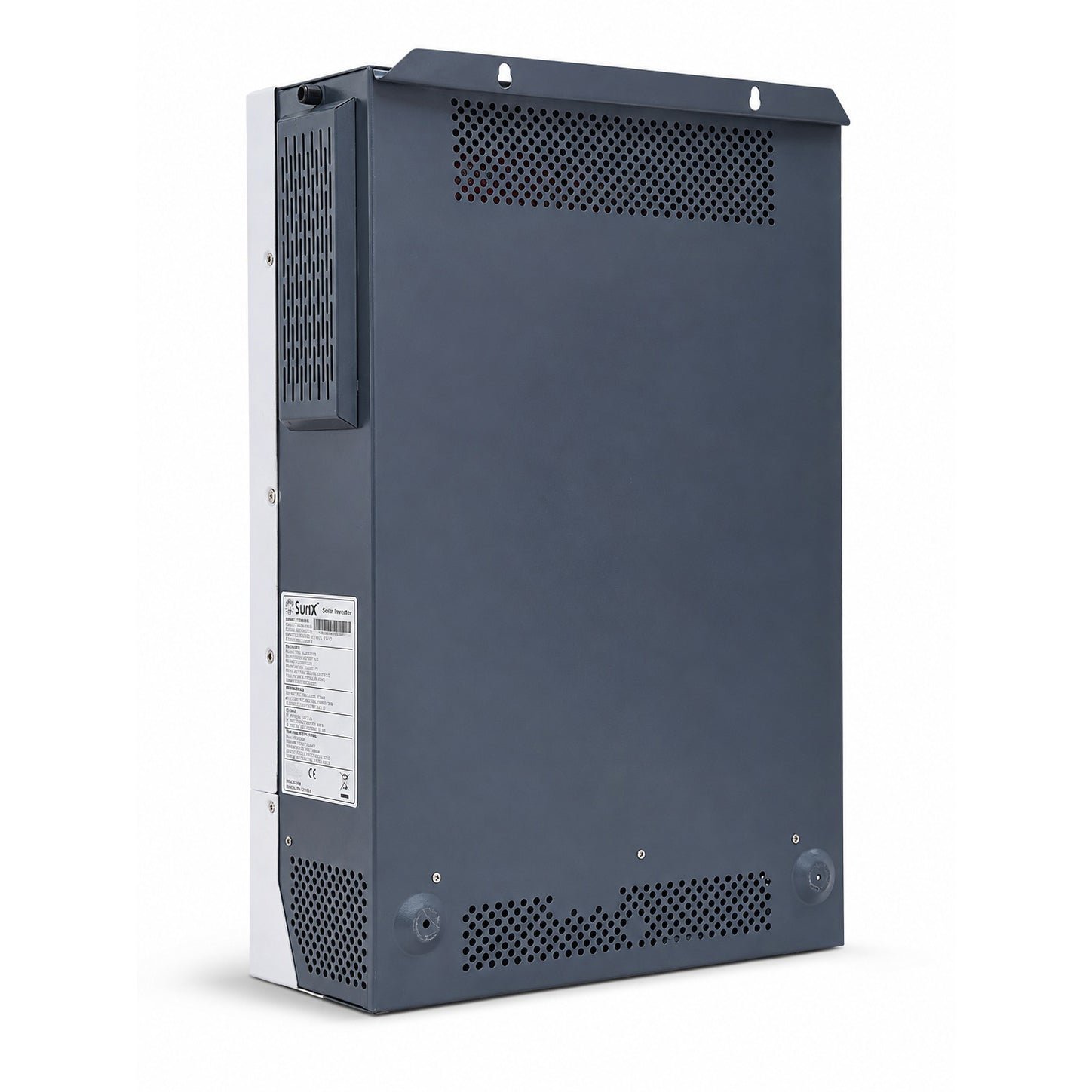

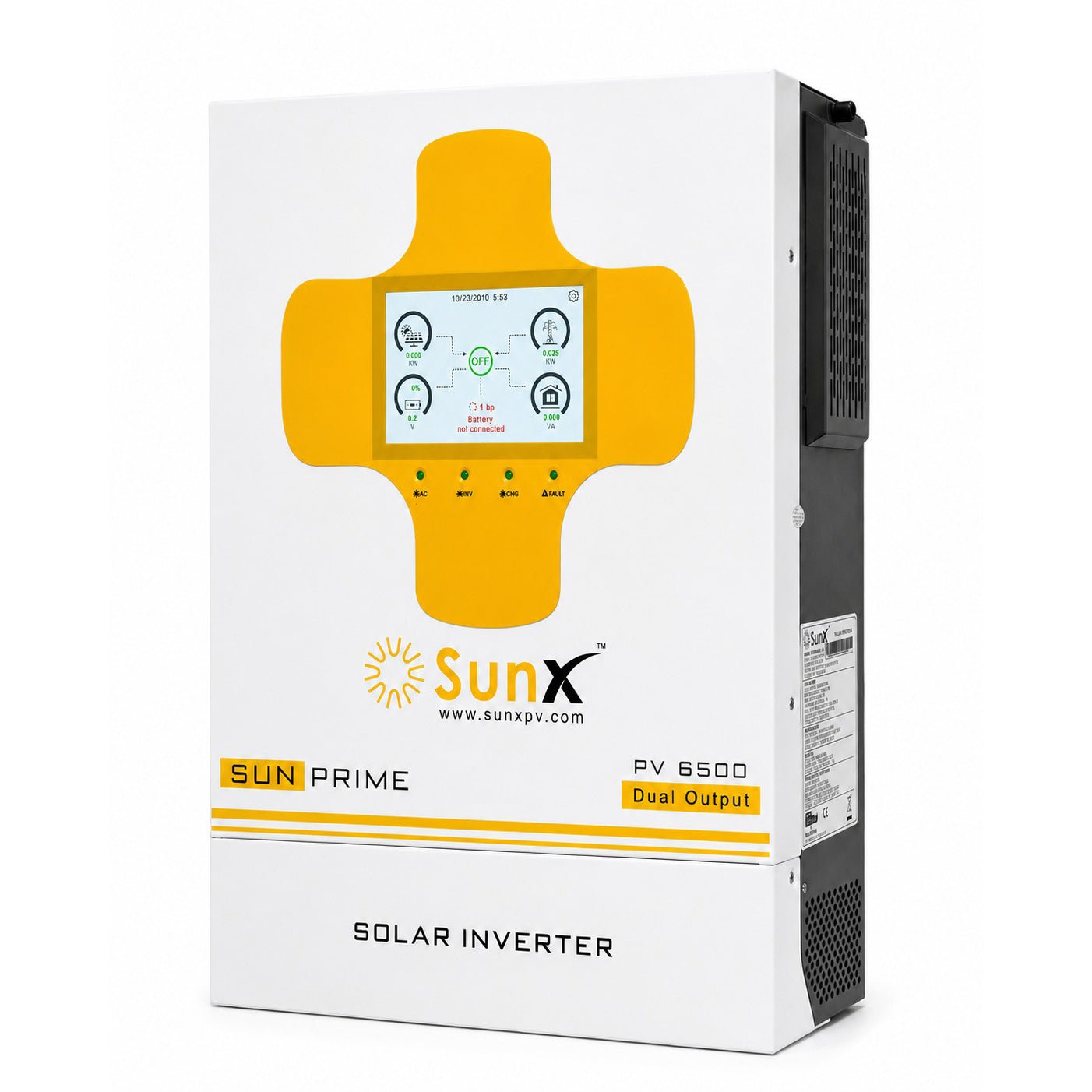

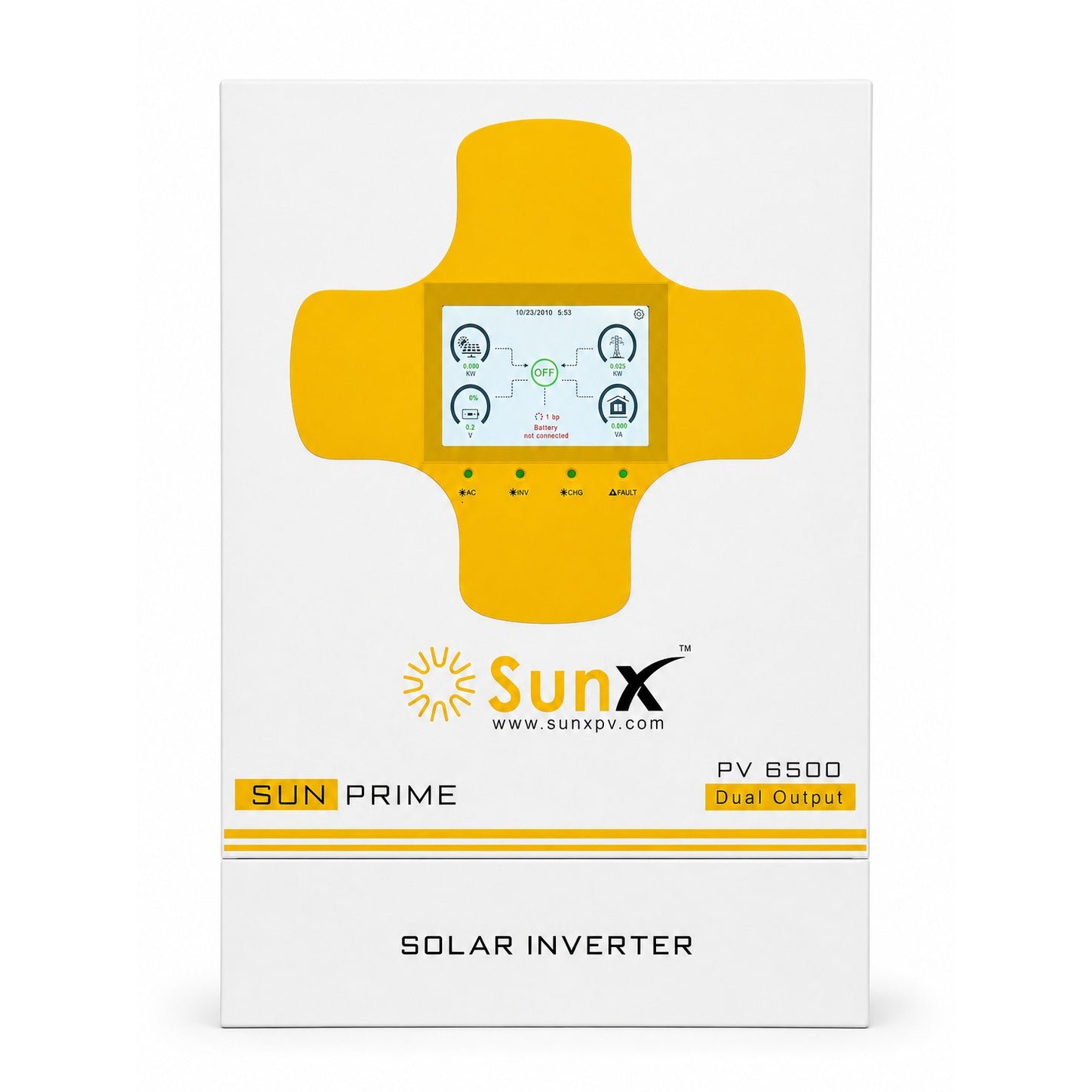

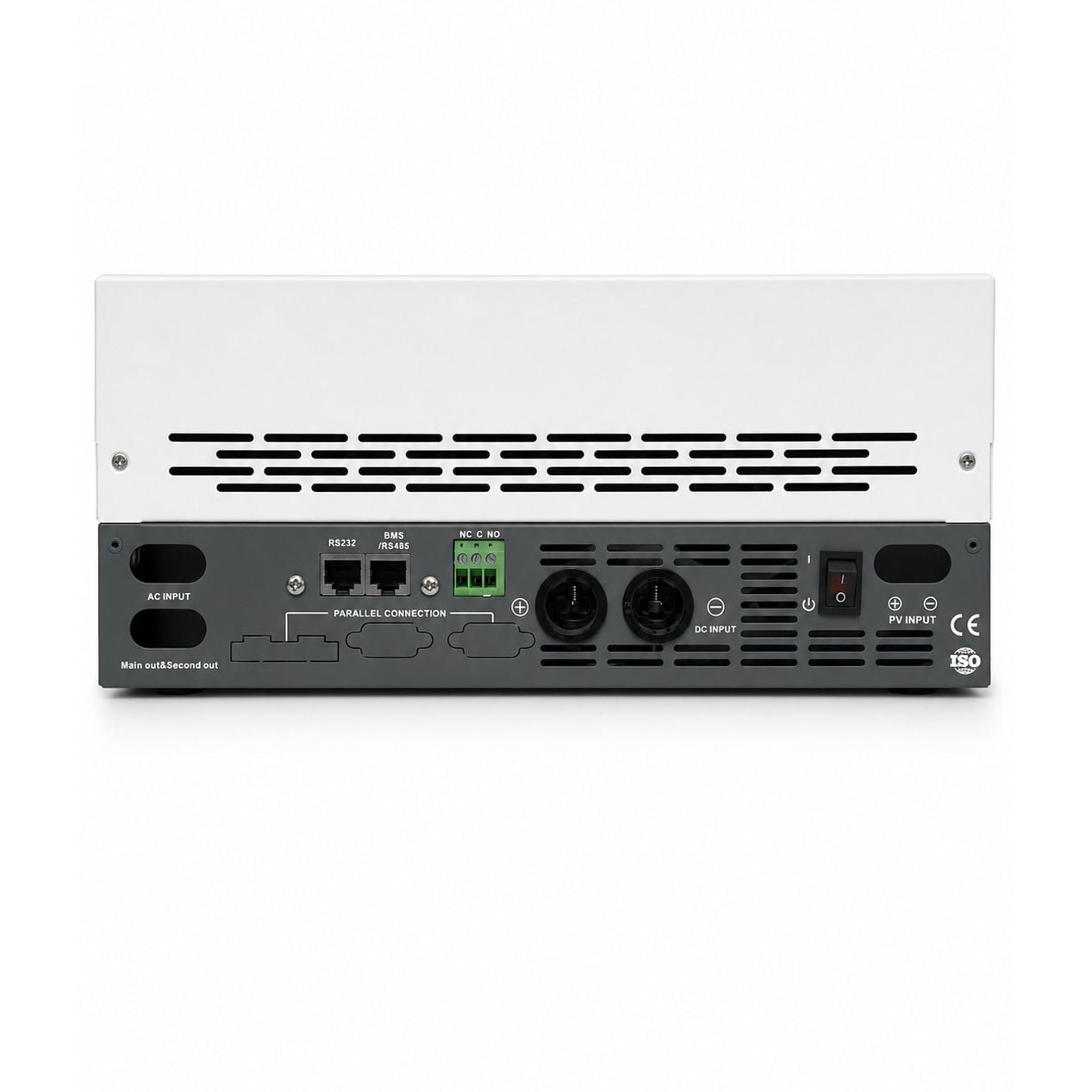

SunX SunPrime 4kW Hybrid Solar Inverter With PV6500, Dual Output, Pure Sinewave

Description

SUNX Sun-Prime 4kW is a pure sine wave hybrid solar inverter designed for residential and small-scale solar applications. The brochure highlights a colored LCD display, dual AC power output, high inverter efficiency, plug-and-play system integration, remote monitoring through a smartphone app or web portal, and industrial-grade components for long-term stability. Key Features Pure Sine Wave output Colored LCD Display Dual AC Power Output High Inverter Efficiency Plug-and-play connectivity for seamless system integration Remote monitoring through smartphone app or web portal Industrial-grade components for long-term stability Parallel capability: up to 6 units Specification Details Rated Power 4000VA / 4000W Parallel Capability Yes, 6 units Input Voltage 230 VAC Selectable Voltage Range 170–280 VAC (for personal computers); 90–280 VAC (for home appliances) Frequency Range 50 Hz / 60 Hz (Auto Sensing) AC Voltage Regulation (Battery Mode) 230 VAC ± 5% Surge Power 8000 VA Efficiency (Peak) 90% / 93% Transfer Time 10 ms (for personal computers); 20 ms (for home appliances) Waveform Pure Sine Wave Battery Voltage 24 VDC Floating Charge Voltage 28.2 VDC Overcharge Protection 27 VDC Solar Charger Type MPPT Maximum PV Array Power 6500 W MPPT Range / Operating Voltage 60–500 VDC Maximum PV Array Operating Voltage 500 VDC Maximum PV Input Current 27 A Maximum Solar Charge Current 120 A Maximum AC Charge Current 100 A Maximum Charge Current 120 A Dimensions (D × W × H) 138 × 330 × 433 mm Net Weight 8 kg Communication Interface USB / RS232 / RS485 / WiFi / Dry-contact / BTS Additional Support Optional GFCI, Rapid Shutdown, AFCI detection External Current Sensor Port Yes, built-in current transformer sensor Humidity 5% to 95% relative humidity (non-condensing) Operating Temperature −10°C to 50°C
