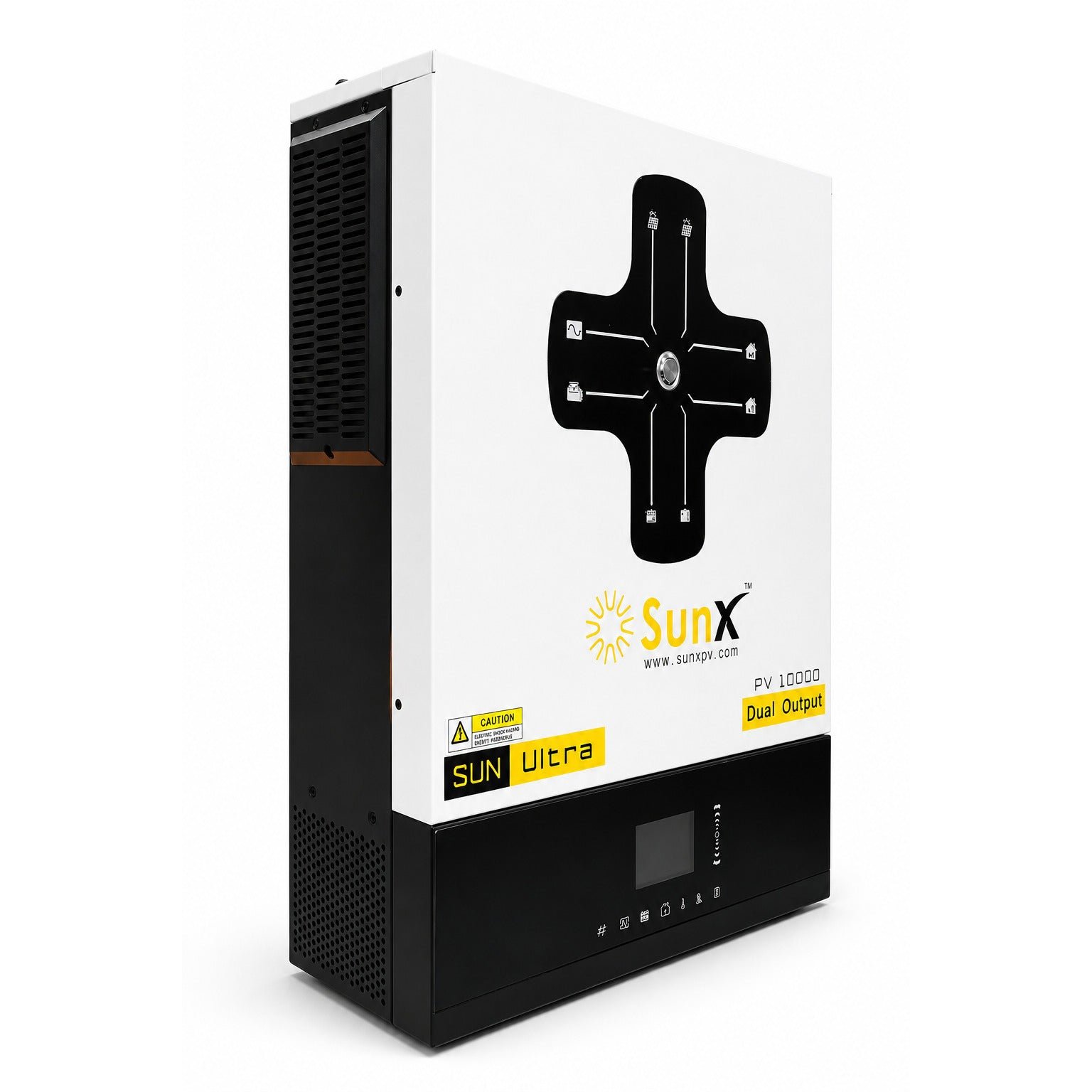

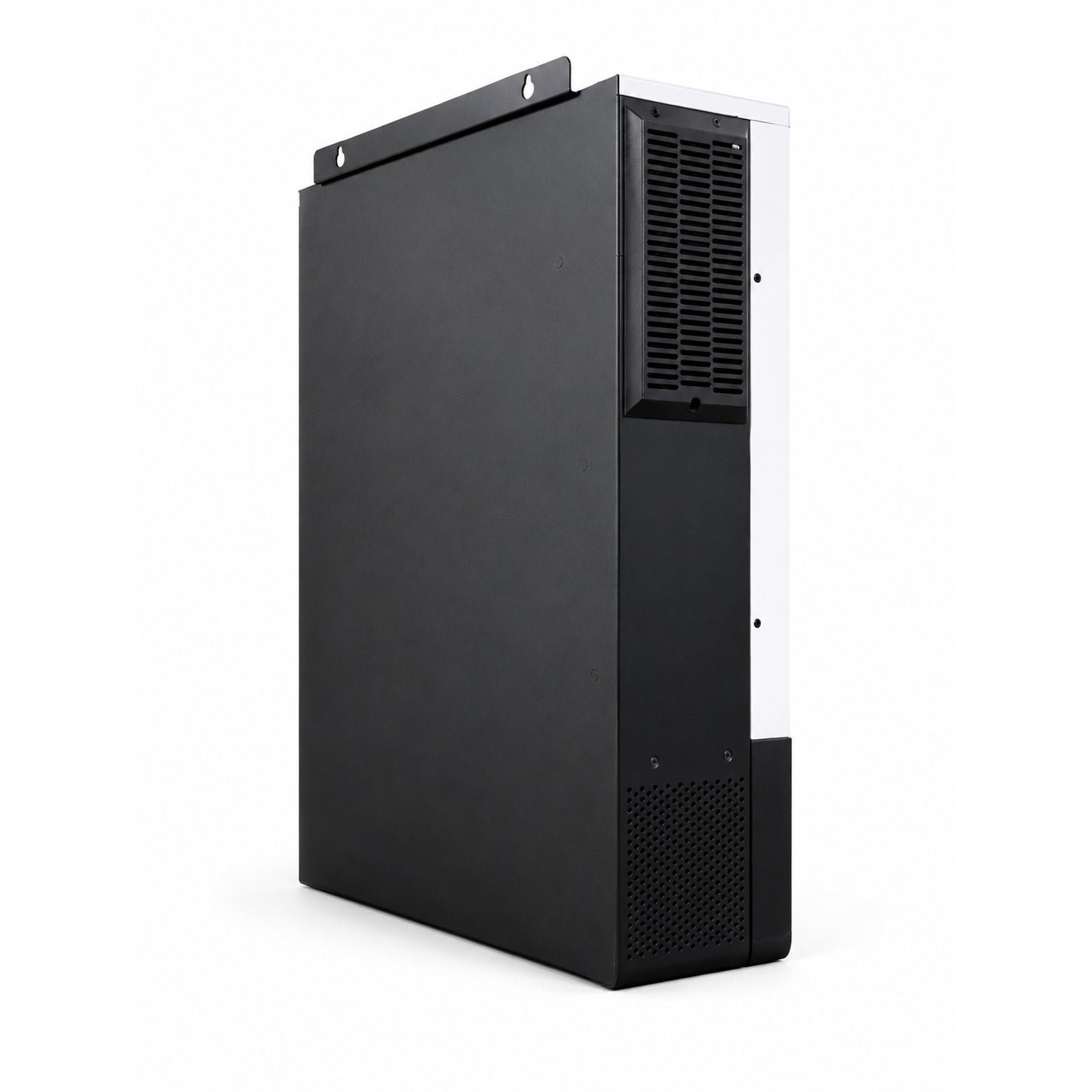

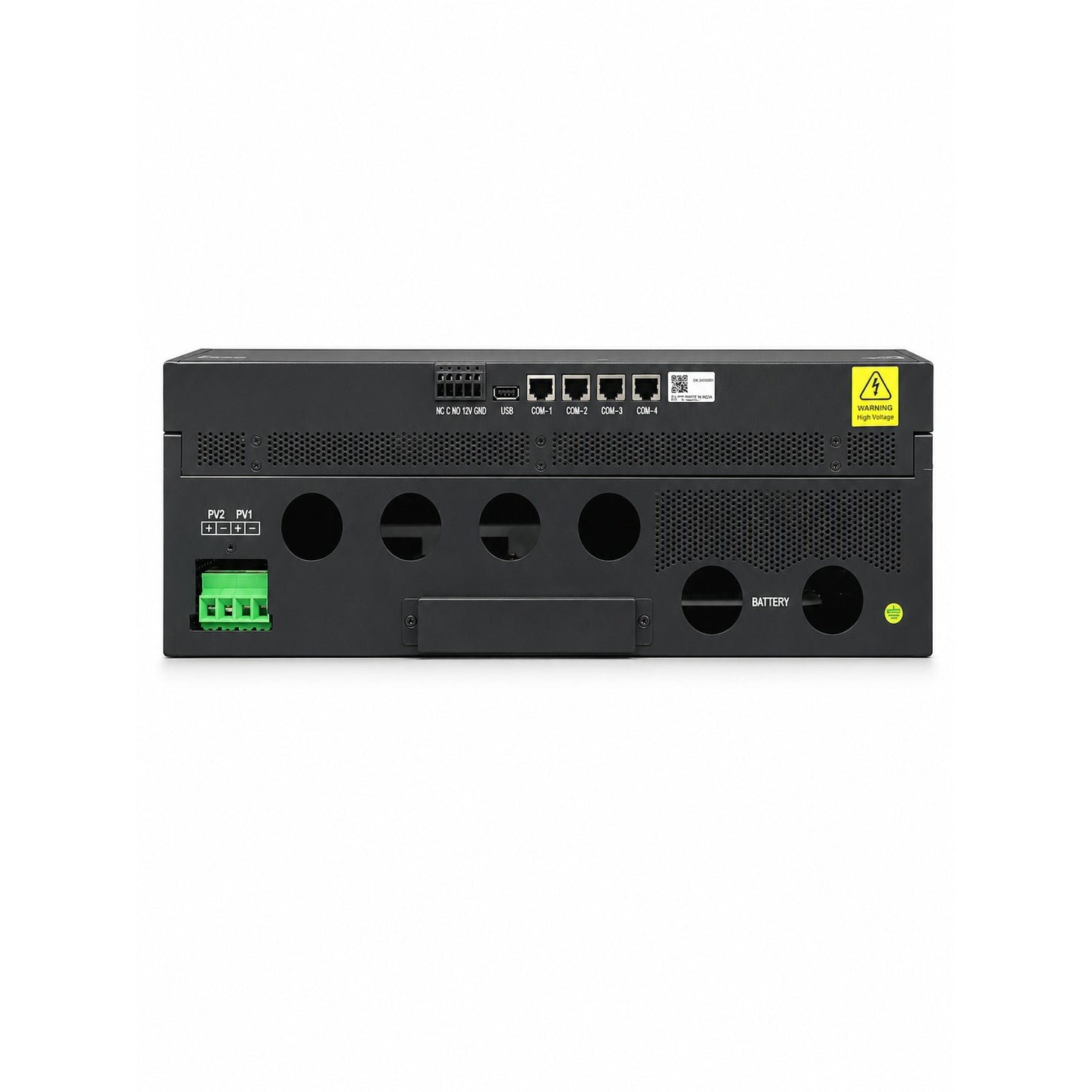

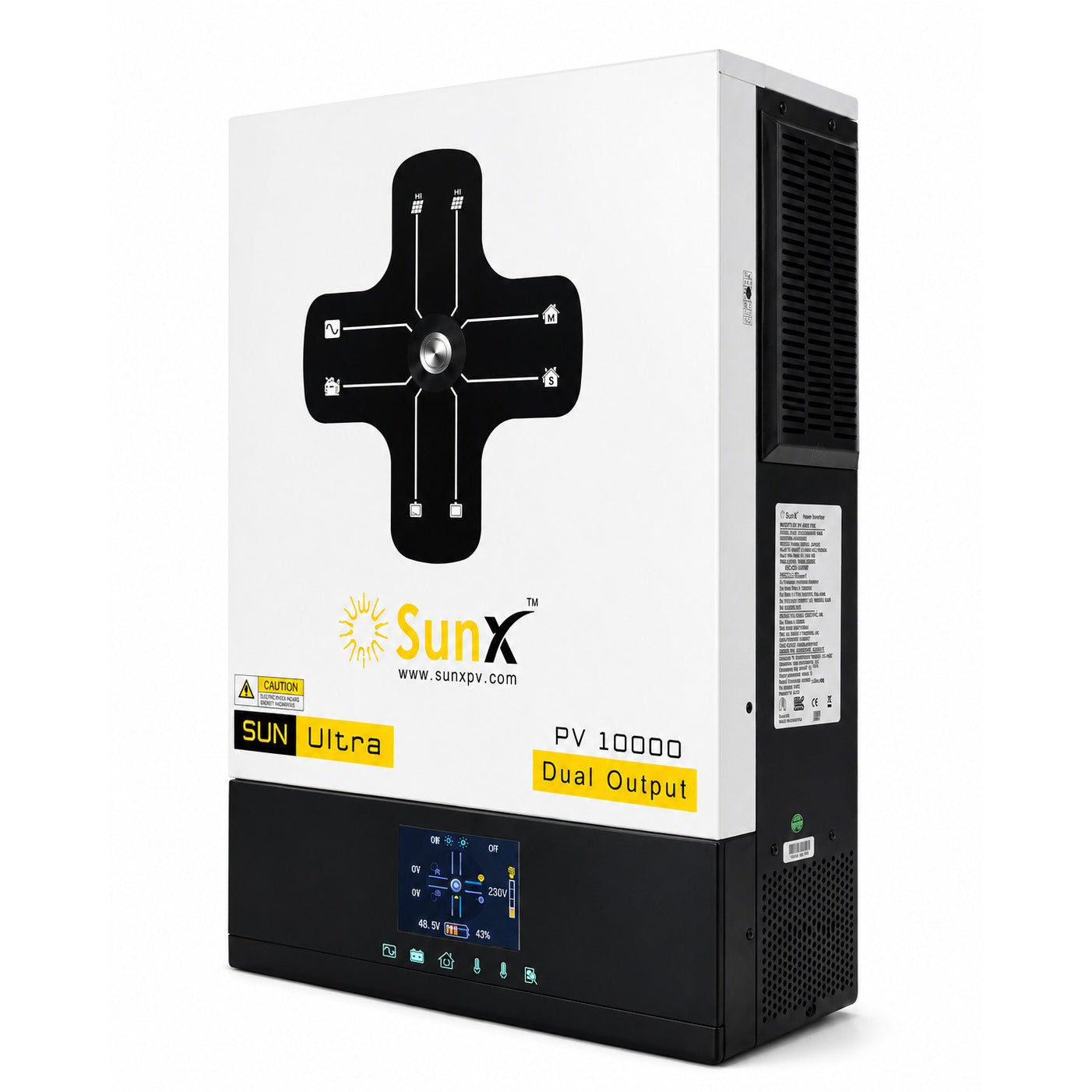

SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave

Description

Hybrid Solar Inverter – 8kW, pure sine wave hybrid inverter with MPPT solar charging, AC charging, 48 VDC battery system, and parallel operation capability for up to 6 units.Pure sine wave output ensures stable and efficient power delivery. Dual MPPT technology supports up to 10,000W solar input.Parallel operation supports up to 6 units with Wi-Fi 8KW Rated Power – Delivers 8000W output with 16000VA surge capacity Pure Sine Wave Output – Provides stable 230V AC power with 90%–93% peak efficiency. Dual MPPT Solar Charging – Supports up to 10,000W solar input with a 90–450VDC MPPT range. High-Speed Charging – Supports up to 150A solar charging and 120A AC charging. Parallel & Smart Connectivity – Supports up to 6 units in parallel, with Wi-Fi, USB, RS232, and RS485 communication interfaces. Specification Details Rated Power 8000VA / 8000W Parallel Capability Yes, 6 units Voltage 230 VAC Selectable Voltage Range 170–280 VAC (for Personal Computers); 90–280 VAC (for Home Appliances) Frequency Range 50 Hz / 60 Hz (Auto Sensing) AC Voltage Regulation (Battery Mode) 230 VAC ± 5% Surge Power 16000 VA Efficiency (Peak) 90%–93% Transfer Time 10 ms (for Personal Computers); 20 ms (for Home Appliances) Waveform Pure Sine Wave Battery Voltage 48 VDC Floating Charge Voltage 54 VDC Overcharge Protection 66 VDC Solar Charger Type MPPT Maximum PV Array Power 10000 W (5000 W × 2) MPPT Range / Operating Voltage 90–450 VDC Maximum PV Array Operation 500 VDC Maximum PV Input Current 27 A × 2 (Max 40 A) Maximum Solar Charge Current 150 A Maximum AC Charge Current 120 A Maximum Charge Current 150 A Dimension (D × W × H) 145 × 438 × 553.6 mm Net Weight 18.4 kg Communication Interface USB / RS232 / RS485 / WiFi / Dry-contact / BTS Additional Protection / Support Supports optional GFCI, Rapid Shutdown, AFCI detection External Current Sensor Port Yes, built-in current transformer sensor Humidity 5% to 95% Relative Humidity (non-condensing) Operating Temperature −10°C to 50°C Storage Temperature −15°C to 60°C Compliance / Safety CE
