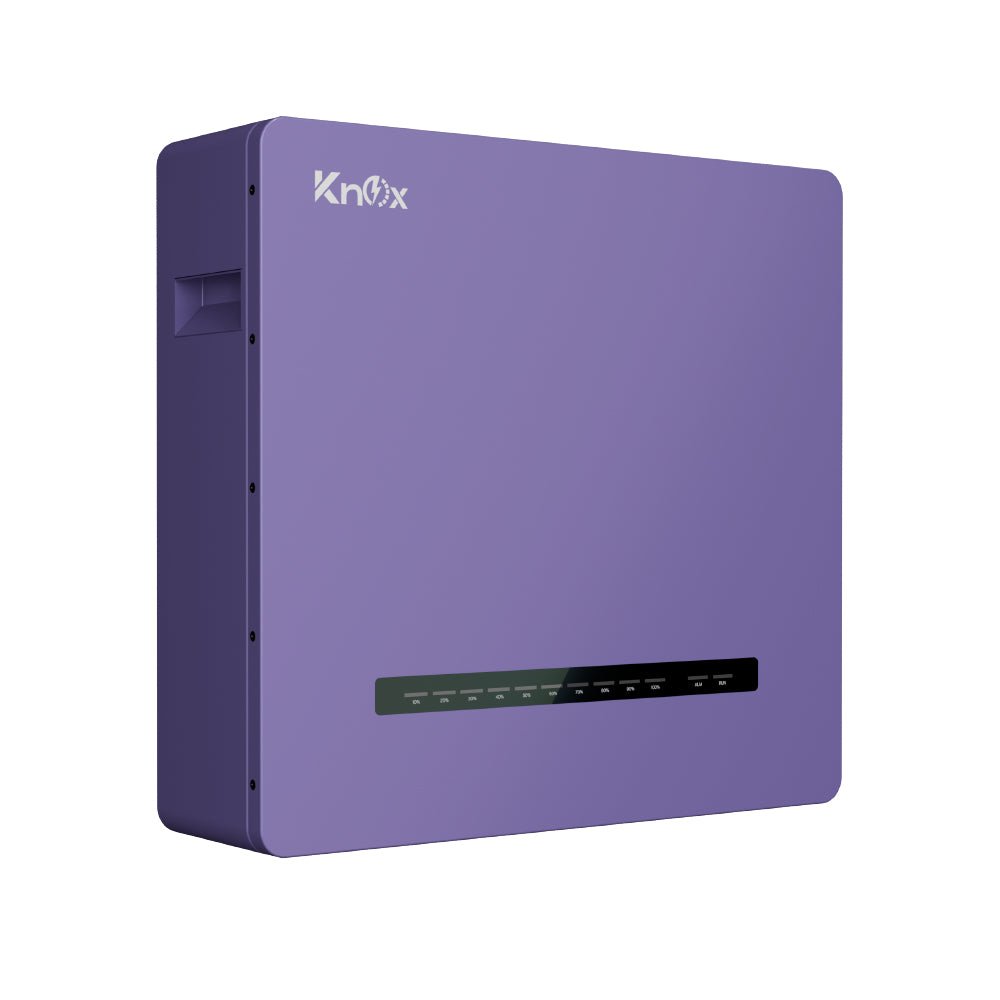

Knox Power Wall 6.0 – 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Description

Knox Power Wall 6.0 – 51.2V 100Ah Lithium-Ion Battery | 5.12kWh Wall-Mounted Energy Storage Solution The Knox Power Wall 6.0 is a high-performance 5.12kWh LiFePO4 energy storage battery, designed for reliable and efficient power in residential or commercial systems. Built with A-grade brand-new prismatic LiFePO4 cells, this wall-mounted unit delivers long-lasting energy storage with advanced safety features and a sleek metal casing for improved heat dissipation. With over 6000 cycles at 80% depth of discharge, smart protection systems, and seamless inverter compatibility, it’s the ideal choice for solar energy storage or backup power. Key Features: Energy Storage: 5.12kWh (51.2V, 100Ah) Battery Cells: A-grade prismatic LiFePO4 cells for safety and longevity Cycle Life: >6000 cycles @ 80% DoD (25°C, 0.5C) Smart Protection: Overcharge, over-discharge, over/low temperature, overcurrent, and short circuit protection Cell Balancing: Built-in cell balancing function for stable performance Display: Low-power, high-brightness LCD with long visual range Durable Build: Metal casing for superior heat dissipation and safety Communication: RS485, RS232, CAN – compatible with major inverters Mounting: Space-saving wall-mounted design Scalability: Connect up to 8 units in parallel Note : Battery DC cables not included in Box of Knox Power Wall 6.0 MODEL LIO 5.20-IP20 ELECTRICAL PARAMETER Battery Type LiFePO4 Nominal Voltage (V) 51.2 Nominal Capacity (AH) 100 Energy (WH) 5120 Pack Mode 16S1P Continuous Discharge Current (A) 100 Charge Cut-off Voltage (V) 57.6 Discharge Cut-off Voltage (V) 41.6 Max. Charge Current (A) 100 Max. Discharge Current (A) 100 Peak Discharge Current (A) 120 Recommend Discharge Current (A) 50 Recommend Discharge Depth (%) 80 Cycle Life > 6000 cycles (25°C, 0.5C) @ 80% DOD Function — Communication RS485/RS232/CAN Display LED Mounting Wall-mounted ENVIRONMENTAL PARAMETER Charge & Discharge Temperature (°C) Charge: 0°C ~ +55°C / Discharge: -20°C ~ +60°C Optimal Storage Temperature (°C) 5°C ~ +35°C Relative Humidity 40% ~ 80% Ingress Protection IP20 MECHANICAL PARAMETER Terminal M6 Dimensions (L*W*H) (mm) 533*500*150 Weight (Kg) 45.1 ± 0.5 Certificate UN38.3 MSDS
