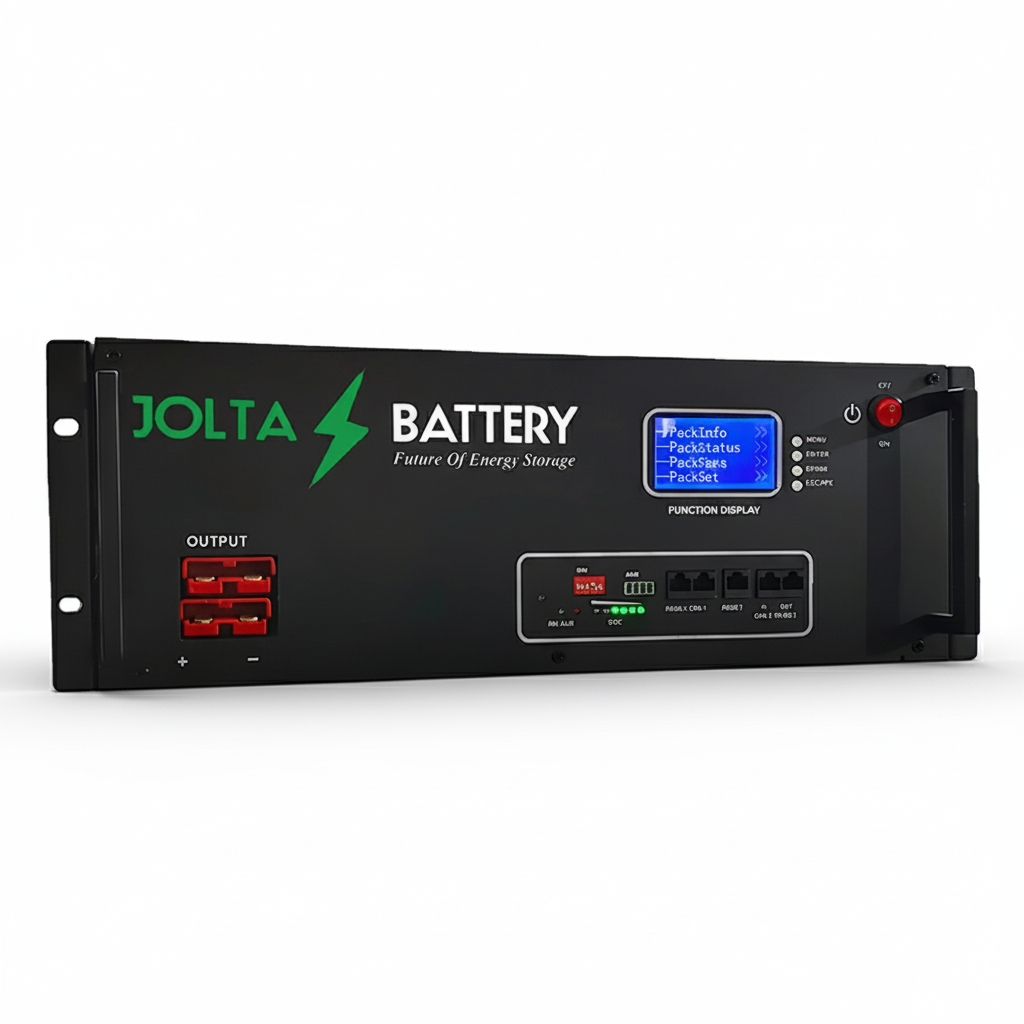

Jolta Nova JB484800N 48V 100Ah (4.80kWh) LiFePO4 Lithium Battery – Rack Mount

Description

Upgrade your power storage with this high-performance JB484800N 48V 100Ah Lithium Iron Phosphate (LiFePO4) Battery, designed for reliability, long life, and consistent energy output. Ideal for solar systems, backup power, RVs, marine, and industrial applications. Key Features: High Capacity & Energy: 100Ah capacity with a total energy of 4.80kWh. Efficient Performance: Continuous charge & discharge up to 100A. Long Lifespan: Projected calendar life of 10+ years with 80% recommended discharge depth. Versatile Use: Supports parallel connection (series option available). Safe & Reliable: Low self-discharge (2–3%/month) and stable operation from -10°C to 60°C. Download Datasheet Model JB484800N Performance Voltage (Nominal) 48 V Maximum Charge Voltage 54 V Discharge Cut-Off Voltage 44 V (Configurable) Total Energy 4800 Wh Total Current 100 A Continuous Discharge Current 50 A Continuous Charge Rate 50 A Cut-Off Current 2 A ESR/AC @ 1 kHz < 10 mΩ Physical Specifications Weight 40 kg (Module) – 43 kg (With Pack) Module Casing Material MS/Aluminum Terminal Type Anderson Dimensions (L × W × H) Module 510 × 540 × 170 mm Dimensions (L × W × H) Pack 560 × 590 × 220 mm Features Jolta Battery; Alarm for under/over voltage, over current, out-of-range temperature Compatible Inverters Pylontech, Victron Energy, Growatt, Deye, Solis, Maxpower, SolarMax, Inverex Service Life Projected Calendar Life ≥ 10 years Shelf Life 5 Years Safety & Environment Over/Under Voltage Unit shut down Over Current Unit shut down Over Temperature Unit shut down Cell Operating Temperature -10°C to 60°C Operating Humidity Non-condensing Additional Parallel Connection Yes Series Connection Custom Option Self-Discharge 2–3% / month Recommended Discharge Depth 80%
