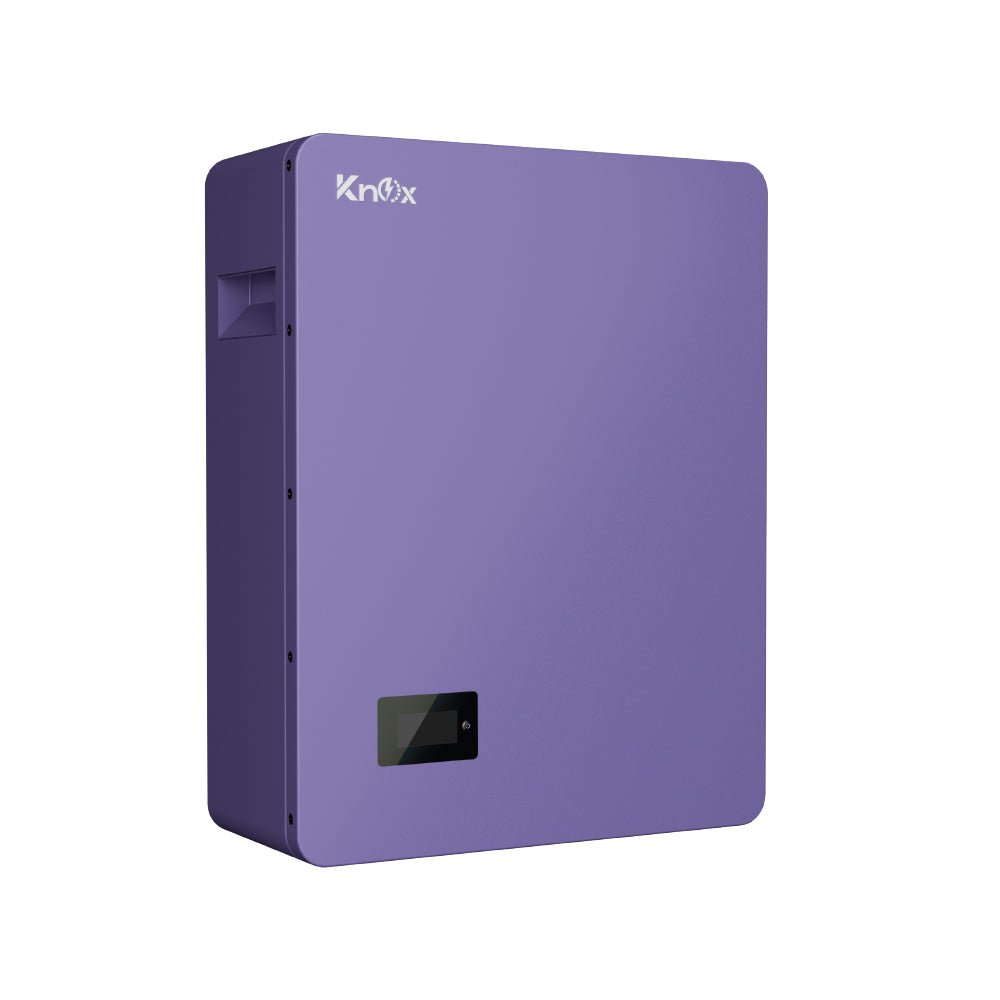

Knox Power Wall 3.0 – 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution With Series Support

Description

Knox Power Wall 3.0 – 25.6V 100Ah IP20 Lithium-Ion Battery | 2.56kWh Wall-Mounted Energy Storage Solution The Knox Power Wall 3.0 is a high-performance 25.6V 100Ah LiFePO4 battery pack offering a total energy capacity of 2.56kWh, ideal for solar energy storage, backup power, and off-grid applications. Built with brand-new A-grade prismatic LiFePO₄ cells, this compact and safe wall-mounted battery is engineered for long service life and exceptional reliability. With over 6000 cycles at 80% DOD, advanced protection circuits, and a smart LCD display, this battery ensures intelligent power management for both residential and commercial use. Note : Battery DC cables not included in Box of Knox Power Wall 3.0 Key Features: Reliable Performance: Over 6000 cycles for long-term savings Smart Monitoring: Built-in LCD screen with real-time battery data Compact & Scalable: Stack up to 4 units in parallel or 2 in series Battery Type: LiFePO₄ (Lithium Iron Phosphate) Energy Storage: 2.56kWh (25.6V 100Ah) Battery Life: 6000+ cycles @ 80% DOD (25°C, 0.5C) Technical Specifications: Parameter Value Model LIO 2.56-IP20 Nominal Voltage 25.6V Nominal Capacity 100Ah Energy 2560Wh Battery Configuration 8S1P Continuous Discharge Current 100A Max Discharge Current (Peak) 120A Recommended Discharge Current 50A Max Charge/Discharge Current 100A Charge Cut-off Voltage 28.8V Discharge Cut-off Voltage 20.8V Recommended DOD 80% Cycle Life >6000 cycles Communication RS485 Mounting Wall-mounted Display LCD Screen Ingress Protection IP20 Working Temperature Charge: 0°C to +55°C / Discharge: -20°C to +60°C Storage Temp (Optimal) 5°C to +35°C Humidity Range 40%–80% RH Terminal Type M6 Dimensions (LxWxH) 350 × 180 × 450 mm Weight 25.1 ± 0.5 kg Scalability Up to 2 in series, 4 in parallel
