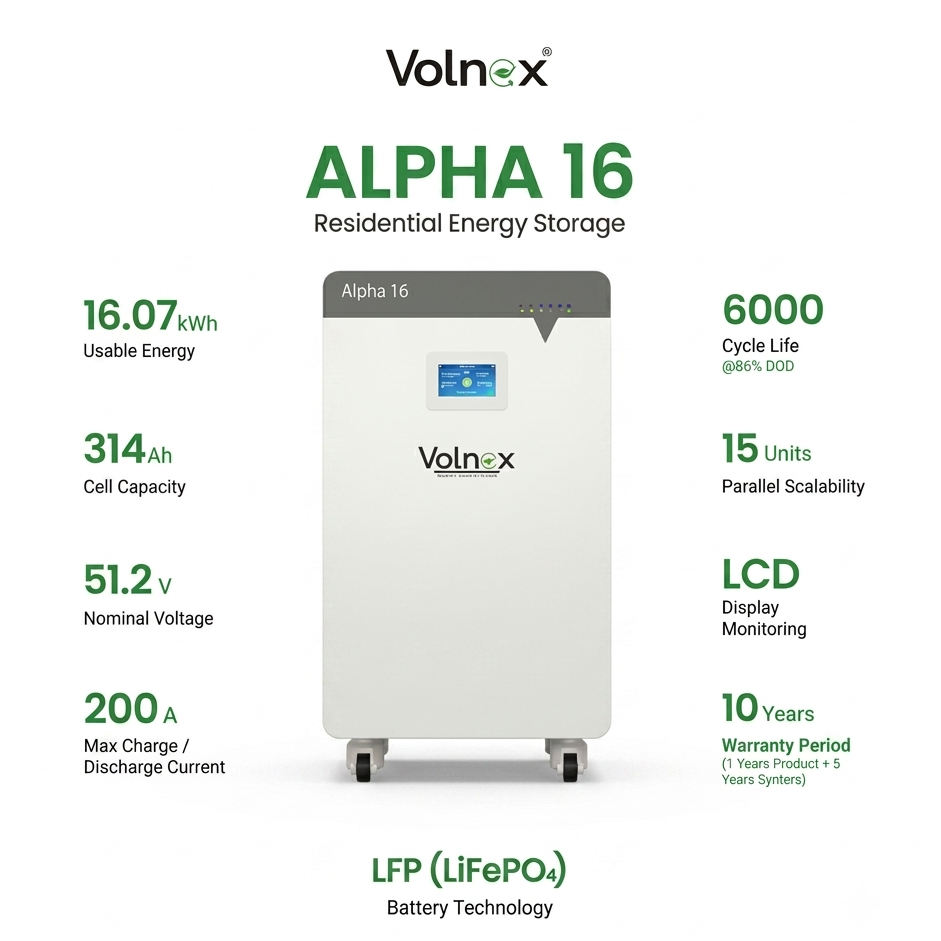

Volnex Alpha 16 Residential Low Voltage LiFePO4 Battery 16.08kWh 51.2V 314Ah

Description

The Volnex Alpha 16 Residential Low Voltage Battery is a premium 16.08kWh LiFePO4 (Lithium Iron Phosphate) energy storage battery designed for residential and light commercial solar energy systems. With a 51.2V, 314Ah capacity, advanced Battery Management System (BMS), and support for up to 15 batteries in parallel, it provides reliable backup power, long service life, and excellent compatibility with leading hybrid and off-grid inverters. Built with high-quality LFP battery technology, the Alpha 16 delivers up to 6000 life cycles while maintaining outstanding safety, efficiency, and durability. It is suitable for on-grid, off-grid, and backup power applications, making it an ideal solution for modern solar energy storage systems. Key Features 16.08kWh usable battery capacity 51.2V 314Ah LiFePO4 (LFP) battery technology 6000+ cycle life at 80% Depth of Discharge Supports up to 15 batteries in parallel 200A maximum charge & discharge current Floor-standing residential energy storage design LCD display with SOC and LED status indicators Specification Details Brand Volnex Model Alpha 16 Battery Technology LiFePO4 (LFP) Usable Energy 16,076.8Wh (16.08kWh) Cell Capacity 314Ah Nominal Voltage 51.2V DC Operating Voltage 44.8V – 56.16V Max Charge Current 200A Max Discharge Current 200A Display LCD Display, SOC Indicator, LED Status Indicators Communication CAN, RS485, RS232, Wi-Fi Installation Type Floor Standing Dimensions (W × D × H) 485 × 245 × 785 mm Weight 122kg Operating Temperature (Charge) 0°C to 50°C Operating Temperature (Discharge) -15°C to 50°C Humidity ≤95% RH (Non-condensing) Protection Rating IP20 Cycle Life 6000 Cycles @ 80% DOD Scalability Up to 15 Batteries in Parallel Applications On-Grid, Off-Grid, Backup Power Compatible Inverters Compatible with Major PCS/Inverter Brands Warranty 10 Years (5-Year Product + 5-Year Service)
