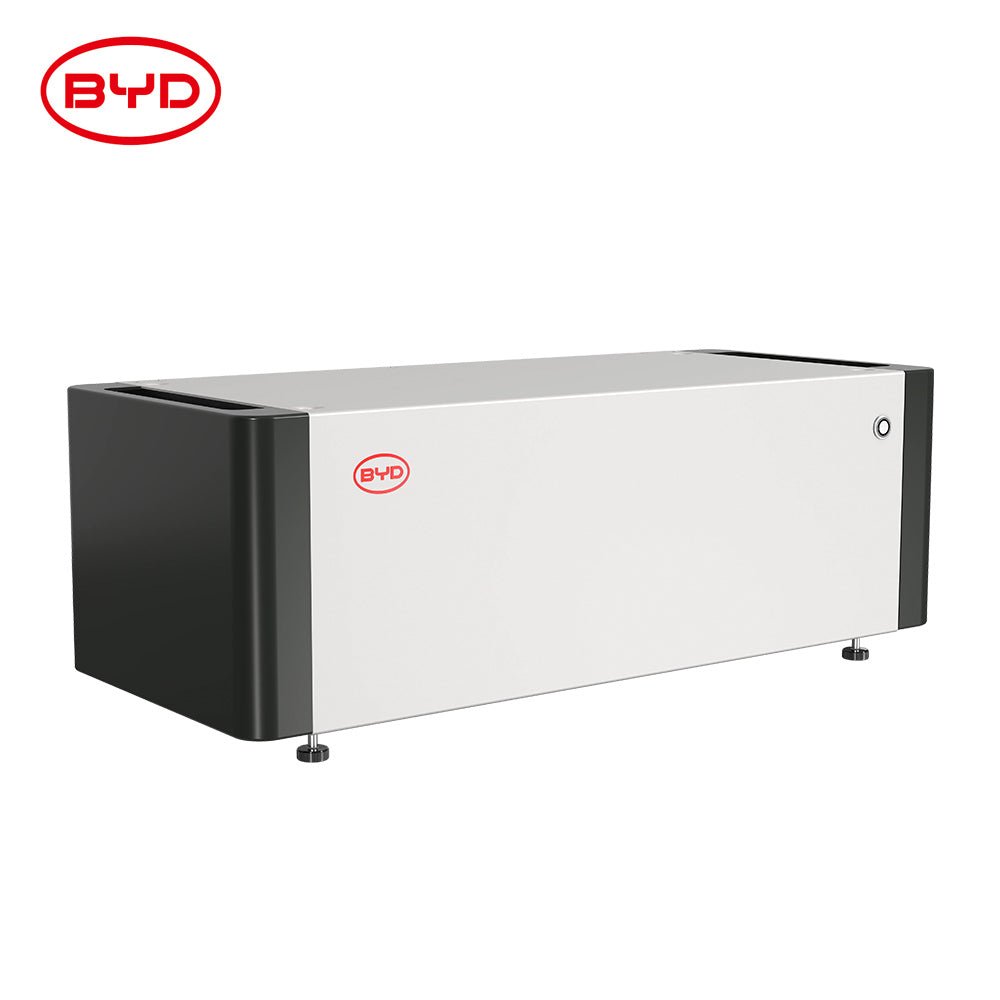

BYD Battery-Box LV5.0+ 51.2V Plus 100Ah IP20 Lithium Iron Phosphate (LiFePO₄) – 5kWh Floor-Standing Energy Storage Solution

Description

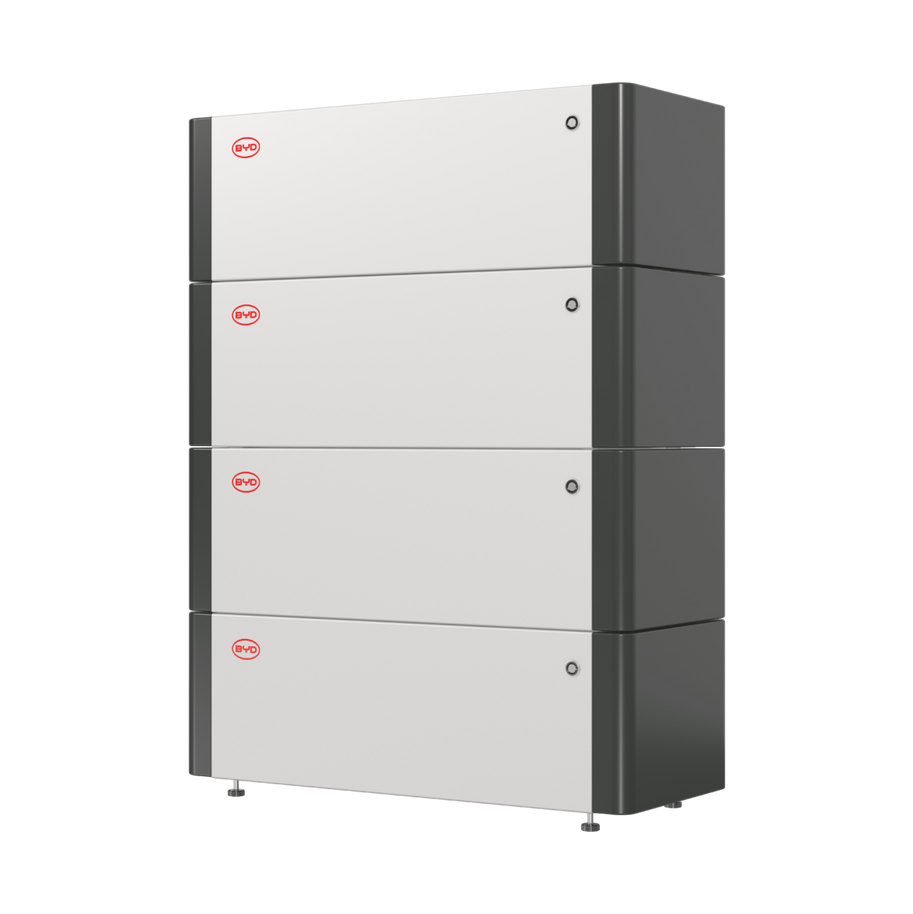

The BYD Battery-Box LV5.0+ is a high-performance 5.12kWh lithium iron phosphate (LiFePO₄) energy storage solution designed for residential, commercial, and off-grid solar systems. Engineered with BYD’s in-house LFP battery cells, it delivers exceptional safety, long service life, and stable performance even under demanding operating conditions. With 100% depth of discharge (DOD), 1C charge and discharge capability, and seamless compatibility with major inverter brands, the LV5.0+ provides a reliable, scalable, and future-ready energy storage solution for solar self-consumption, backup power, and energy independence. With 6000 Charging Cycles. Advanced LiFePO₄ Safety Technology – In-house developed LFP cells ensure superior thermal stability, long cycle life, and maximum safety High Performance Output – Supports up to 100A continuous and 200A peak (10s) charge/discharge current with 100% DOD Scalable Energy Storage – Expandable up to 32 batteries in parallel, reaching 163.84kWh total capacity Wide Inverter Compatibility – Works with BYD and leading inverter brands including Victron, Deye, Solis, Inverex Nitrox Series, GOODWE, and MA Pilot Smart Monitoring & Control – 24/7 online monitoring, remote diagnostics, OTA updates, and real-time data via BYD Energy App Easy Plug-and-Play Installation – Floor-standing design with fast installation and one-click auto-configuration Long-Term Reliability – Backed by 10-year warranty Download Datasheet Parameter Specification Model BYD Battery-Box LV5.0+ Battery Chemistry Lithium Iron Phosphate (LiFePO₄) Usable Energy 5.12 kWh Nominal Voltage 51.2 V Operating Voltage Range 40 – 58.4 V Charge Cut-Off Voltage 58.4 V Discharge Cut-Off Voltage 40 V Max Charge/Discharge Current 100 A Peak Charge/Discharge Current 200 A (10 seconds) Dimensions (H × W × D) 195 × 625 × 285 mm Weight 45 kg Installation Mode Floor-standing Scalability Up to 32 units (163.84 kWh max) Communication CAN / RS485 Round-Trip Efficiency 2.95% Operating Temperature (Charge) 0°C to 55°C Operating Temperature (Discharge) –20°C to 55°C IP Rating IP20 Humidity Range 5% – 95% Maximum Altitude < 4000 m Warranty 10 Years Certifications CE / IEC 62619 / UN38.3 Applications On-Grid, On-Grid + Backup, Off-Grid Optional Accessories BYD Smart WiFi / LAN Module
