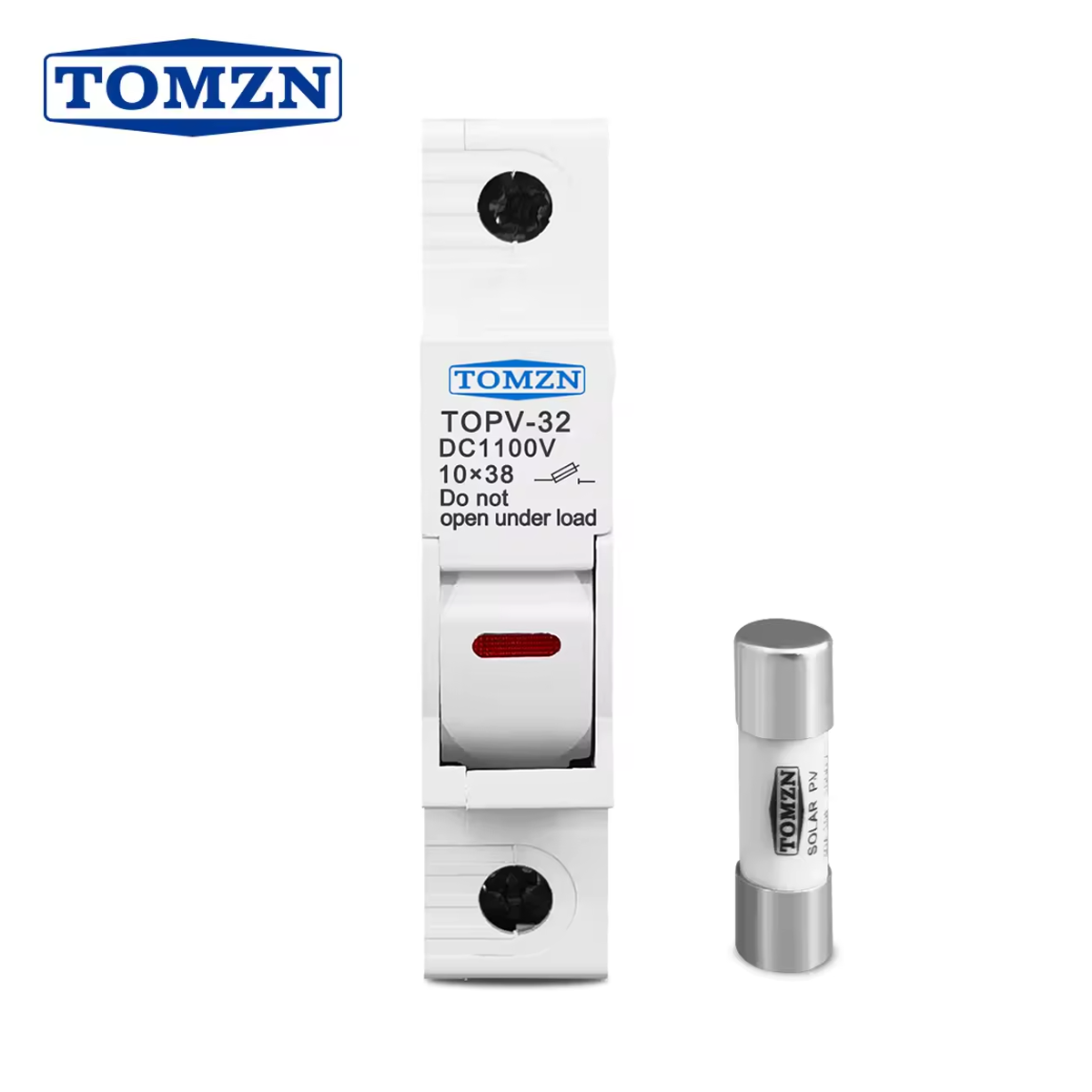

Tomzn TOPV-32 Fuse Set – DC 1000V Overload & Short Circuit Protection

Description

Tomzn TOPV-32 Fuse – Compatible with DC 1000V Systems Key Features: Brand: Tomzn Model Number: TOPV-30 1P Maximum Voltage: 1000V DC Current Range: 1-30A Short Circuit and Overload Protection: Ensures the safety of electrical systems by preventing damage due to overload or short circuits. Fuse Type: 10 x 38 gPV fuse-links (for photovoltaic systems) Max Dissipation: 4W Wire Range: 1-10mm² (use 75° CU wire only) Torque: 1.8-2.3Nm (for installation) Usage: Photovoltaic (PV) fuses for solar energy systems. Safety Features: Do not connect or disconnect under load. Use in systems with a DC voltage of up to 1000V. Impulse voltage withstand (Uimp) rating: 6kV. Complies with: IEC/EN60947-1 IEC/EN60947-3 Applications: Photovoltaic (PV) Systems: Ideal for use in solar energy systems, ensuring safe operation and protecting circuits from overloads or short circuits. DC Electrical Systems: Provides reliable protection in various DC circuits, preventing damage from electrical faults. Installation Notes: Important Safety Notice: Do not open the fuse under load to avoid electrical hazards. Wiring: Only use copper wire with a 75°C insulation rating for proper functioning and safety. The Tomzn TOPV-32 DC 1000V Voltage Fuse is a reliable and high-quality solution for protecting DC circuits, especially in photovoltaic (solar power) systems. It ensures system safety and is designed for easy installation and replacement in critical applications.
