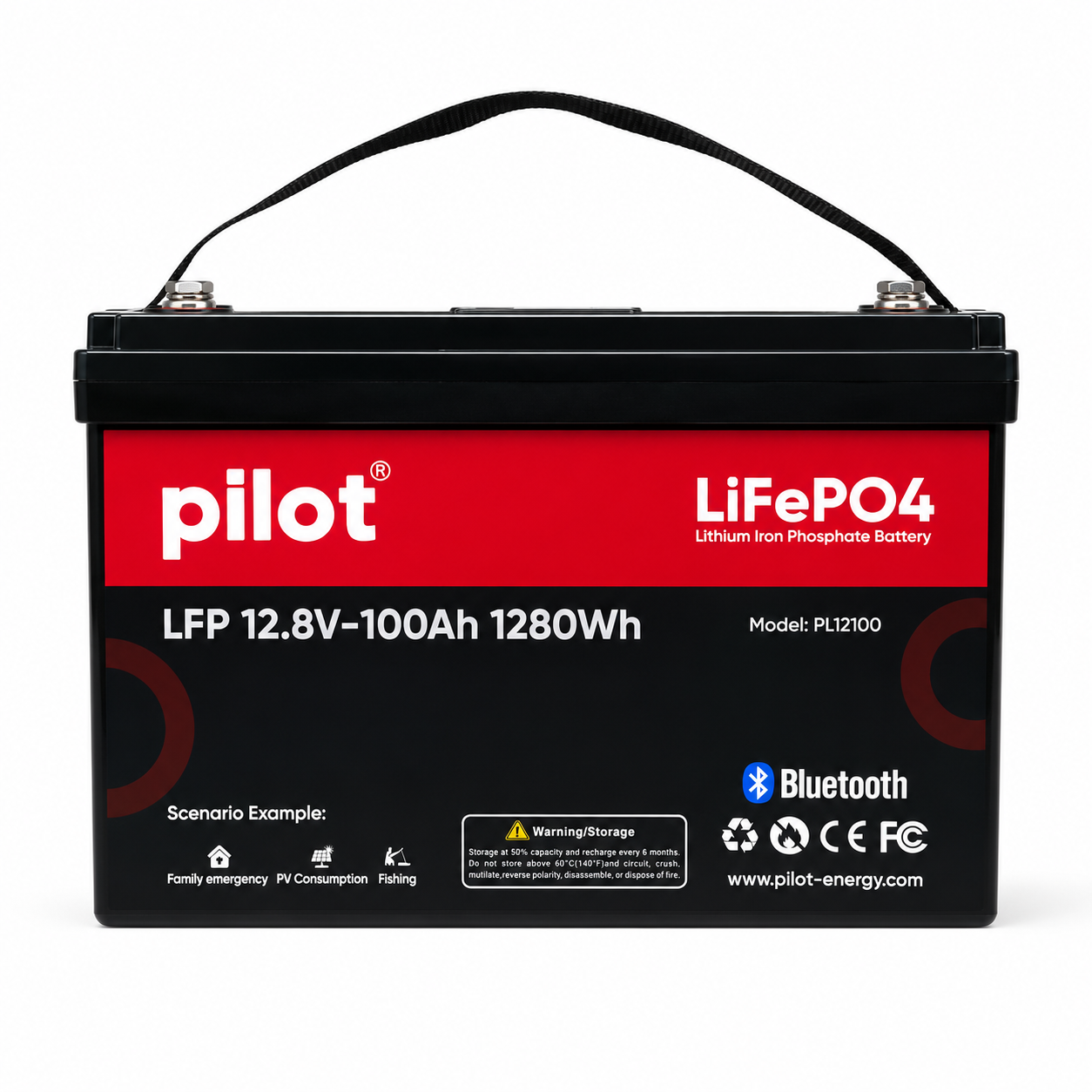

Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery IP65

Description

The Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery is a high-performance deep cycle battery designed for solar energy storage, backup power systems, RVs, marine applications, and off-grid installations. Built with advanced LiFePO4 (Lithium Iron Phosphate) cell technology, it delivers over 6,000 charge cycles, fast charging, lightweight construction, and exceptional safety. Featuring a built-in 100A Battery Management System (BMS), the battery provides protection against overcharging, over-discharging, overcurrent, short circuits, and temperature fluctuations for reliable long-term operation. Its durable ABS housing and IP65-rated protection make it suitable for demanding indoor and outdoor environments. Key Features 12.8V 100Ah LiFePO4 Lithium Battery 1.28kWh (1280Wh) Energy Capacity Long service life with 6000+ charge cycles Built-in 100A Battery Management System (BMS) High charge efficiency up to 100% 96–99% discharge efficiency Lightweight and maintenance-free design Low self-discharge (<3% per month) Durable ABS plastic enclosure IP65-rated dust and water resistance Suitable for solar systems, UPS, RVs, marine, telecom, and backup power Specification Details Nominal Voltage 12.8V Nominal Capacity 100Ah (C5, 25°C) Energy 1280Wh Internal Resistance <150mΩ Cycle Life >6000 Cycles Self Discharge <3% per Month Charge Efficiency 100% @ 0.2C Discharge Efficiency 96–99% @ 1C Certifications CE, FCC, PSE, RoHS Charge Voltage 14.6V ±0.2V Charge Mode 0.2C to 14.6V, then constant voltage at 14.6V until charge current reaches 0.02C (CC/CV) Standard Charger Current 20A Maximum Charge Current 100A Charge Cut-off Voltage 14.8V ±0.2V Continuous Discharge Current 100A Maximum Pulse Current 300A (<3 seconds) Discharge Cut-off Voltage 10V Charge Temperature 0°C to 45°C (32°F to 113°F) @ 60±25% RH Discharge Temperature -20°C to 60°C (-4°F to 140°F) @ 60±25% RH Storage Temperature 0°C to 40°C (32°F to 104°F) @ 60±25% RH Water & Dust Resistance Not Specified Cell Configuration 3.2V 100Ah – 4S1P Battery Case Material ABS Plastic Dimensions (L × W × H) 330 × 173 × 220 mm Weight 10.3 kg Terminal Type M8 Communication Protocol Optional (Not Included)
