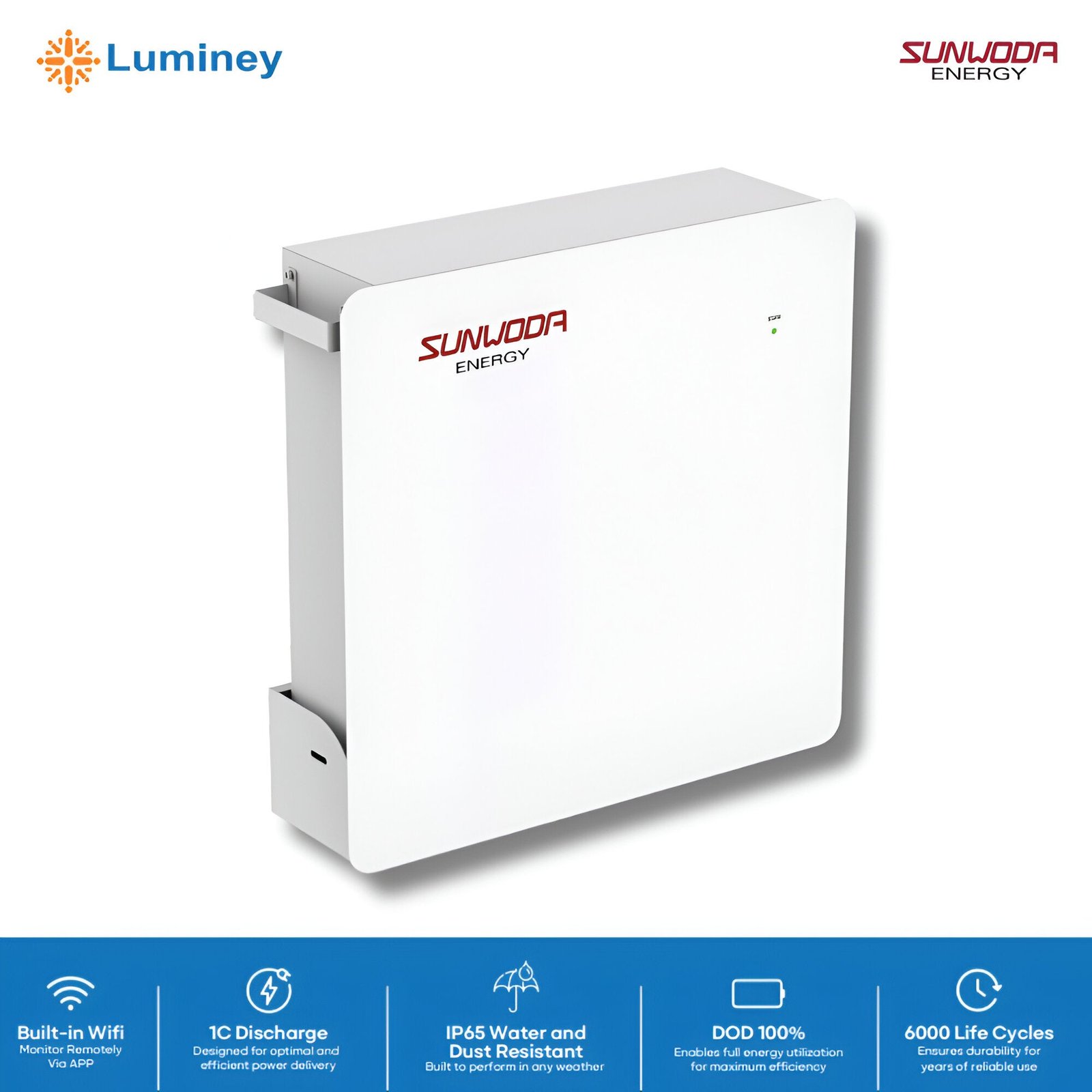

Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA

Description

Luminey MonaWall SE5 Lithium Battery (5kWh) The Luminey MonaWall SE5 is a high-performance LiFePO4 battery designed for residential and commercial energy storage. With 6000 life cycles, 100% Depth of Discharge (DOD), and built-in WIFI monitoring, it ensures efficient and reliable energy storage. Its IP65 rating makes it suitable for both indoor and outdoor installation. Key Features 1C Discharge Rate – Provides optimal and efficient power delivery. Built-in WIFI – Enables remote monitoring via a mobile app. 100% Depth of Discharge (DOD) – Allows full energy utilization for maximum efficiency. 6000 Life Cycles – Ensures long-term durability and performance. IP65 Water & Dust Resistance – Suitable for all weather conditions. Quick Plug & Unplug DC Terminal – Simplifies installation and maintenance. Anti-Expansion Design & Built-in Heater – Enhances battery lifespan and performance in various environments. Scalable – Supports up to 16 batteries in parallel, reaching a total capacity of 80kWh. 7-Year Warranty – Standard 6-year warranty, extendable to 7 years when connected to WIFI. Specifications Specification Details Model MonaWall SE5 Nominal Energy 5kWh Usable Energy (100% DOD) 5kWh Rated Voltage 51.2V Charge/Discharge Voltage 44.8V ~ 55.2V Roundtrip Efficiency >98% Rated Charge/Discharge Current 50A / 50A Max. Continuous Charge/Discharge 100A / 100A Communication Interface CAN 2.0 / RS 485 Scalability Max. 16 in parallel (80kWh) Installation Wall-mounted Weight 55kg Dimensions (WHD) 544 × 524 × 162 mm Operating Temperature Charging: -10°C to 50°CDischarging: -20°C to 50°C Humidity 10% to 95%, non-condensing Altitude Limit <4000m Cooling Natural convection Enclosure Protection IP65 (water & dust resistant) Certifications IEC62619 / CE / UN38.3 Compatible Inverters Refer to compatibility list Warranty 6+1 years (with WiFi module) The Luminey MonaWall SE5 is a robust energy storage solution, offering high efficiency, long life, and smart monitoring capabilities, making it ideal for off-grid and hybrid solar systems.
