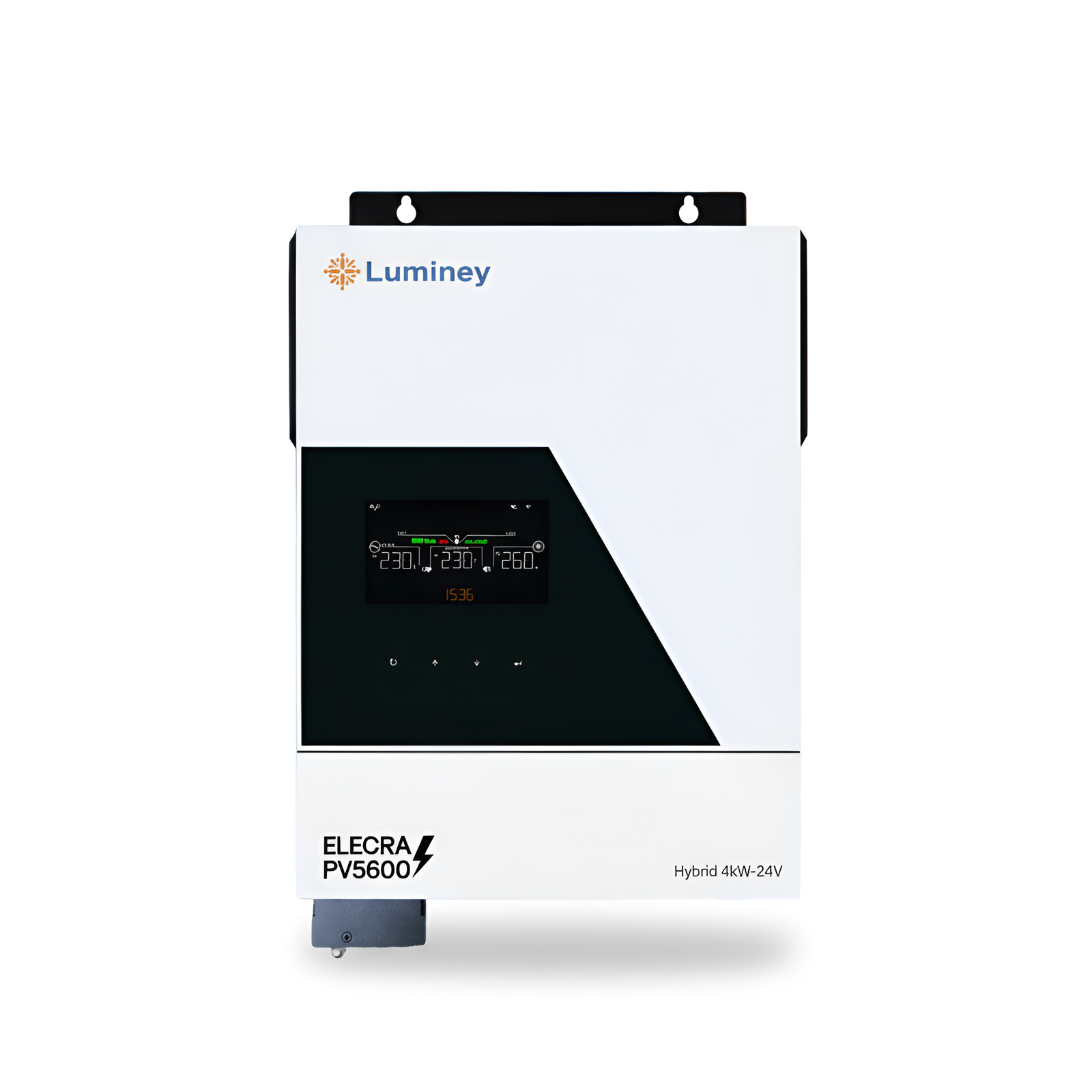

Luminey Elecra 4kW Hybrid Solar Inverter with PV5600 | 24V | Pure Sine Wave | Touch Button LCD Display

Description

The Luminey Elecra PV5600 4kW Hybrid solar Inverter is a high-performance single-phase inverter designed for reliable home and commercial solar power systems. Equipped with an advanced MPPT solar charger, wide PV input range, and fast transfer time, this inverter delivers stable, efficient and uninterrupted power for modern energy needs. It supports both solar and AC charging, making it ideal for hybrid and off-grid installations. Key Features 4000W rated power with 8000VA surge capability Pure sine wave output for smooth performance MPPT solar charging with up to 5600W PV input Fast 10–20 ms transfer time for sensitive electronics Wide PV voltage range (60–450 VDC) Multi-communication interfaces: USB, RS232, RS485, WiFi, Dry-contact Compact design with low weight for easy installation Category Specification MODEL Elecra PV5600 Rated Power 4000VA / 4000W Input Voltage 230VAC ±10% Selectable Voltage Range 170–280 VAC (PC mode) / 90–280 VAC (Home Appliances) Frequency Range 50Hz / 60Hz (Auto sensing) Output – AC Voltage Regulation (Batt. Mode) 230 VAC Surge Power 8000VA Efficiency (Peak) 90% – 93% Transfer Time 10 ms (PCs) / 20 ms (Home Appliances) Waveform Pure Sine Wave Battery Voltage 24 VDC Floating Charge Voltage 27 VDC Overcharge Protection 33 VDC Solar Charger Type MPPT Maximum PV Array Power 5600W MPP Operating Voltage Range 60 – 450 VDC Maximum PV Open Circuit Voltage 500 VDC Maximum PV Input Current 27A Maximum Solar Charge Current 120A Maximum AC Charge Current 100A Maximum Charge Current (Combined) 120A Dimensions (D×W×H) 119 × 313.6 × 457.5 mm Net Weight 10 kg Communication Interface USB / RS232 / RS485 / WiFi / Dry-contact Humidity 5% – 95% RH (Non-condensing) Operating Temperature –10°C to 50°C Storage Temperature –15°C to 60°C
