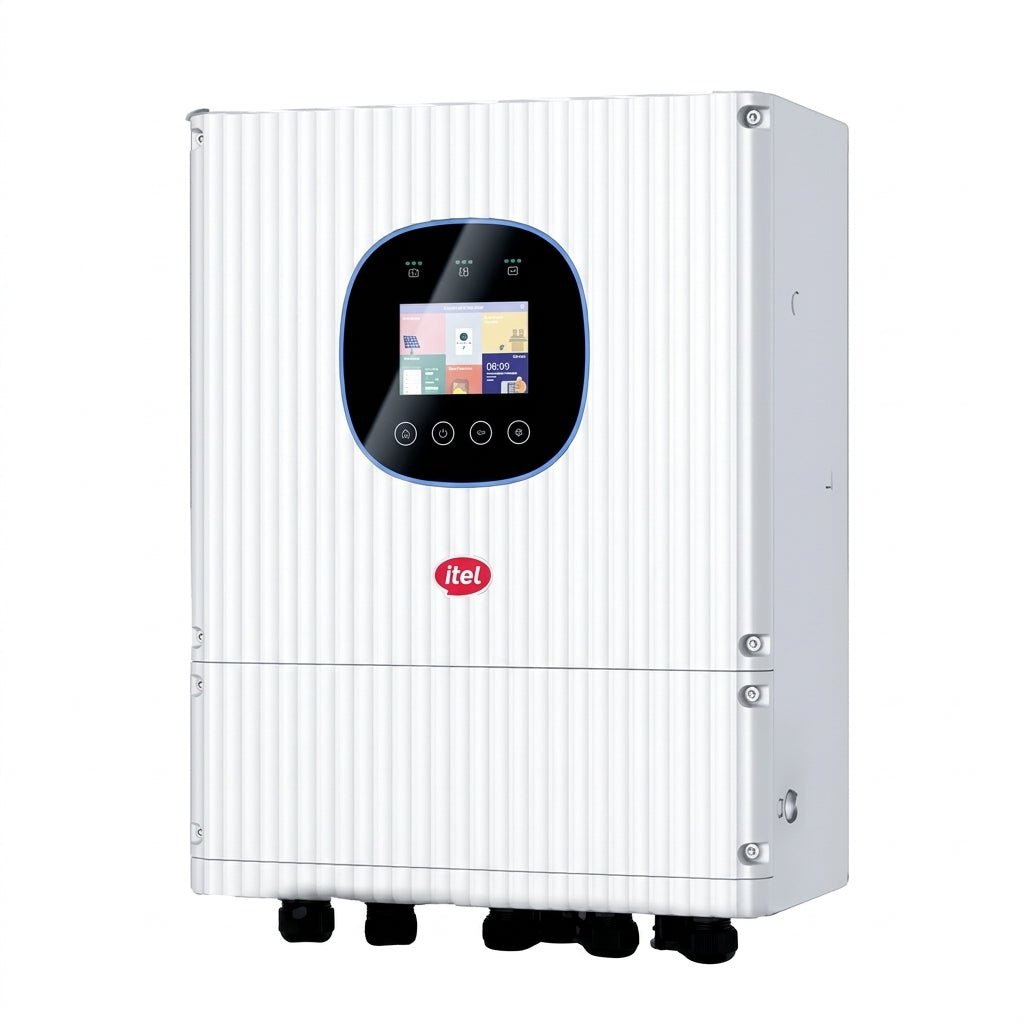

Itel 6.6kW Hybrid Solar Inverter 48V LV IP66 | Dual MPPT

Description

The Itel 6.6kW Hybrid Solar Inverter LV IP66 is designed for reliable solar power generation, efficient battery charging, and dependable backup power for residential and light commercial applications. With a rated output of 6,600W (6.6kW) and a maximum PV input capacity of 13,200W, it supports high-capacity solar panel installations for improved energy utilization. Built with an IP66-rated enclosure, the Itel 6.6kW inverter offers enhanced protection against dust and powerful water jets, making it suitable for demanding installation environments when installed according to the manufacturer’s guidelines. Key Features 6.6kW Rated Output: Delivers 6,600W of continuous rated power for residential and light commercial energy needs. 13,200W Maximum PV Input: Supports a high-capacity solar panel array for greater solar energy generation potential. Dual MPPT Technology: Helps optimize solar power harvesting across two maximum power point tracking channels. Wide MPPT Voltage Range: Operates within a 60V–425V MPPT voltage range for flexible solar panel configuration. 140A Maximum Solar Charging: Supports high-current solar battery charging when sufficient solar power is available. 48V Low-Voltage Battery System: Designed for compatibility with 48V battery-based energy storage systems. Lithium-Ion and Lead-Acid Compatibility: Supports multiple battery chemistries, subject to manufacturer specifications and configuration. IP66 Protection Rating: Provides protection against dust ingress and powerful water jets for demanding installation environments. Hybrid Solar Functionality: Combines solar generation, battery storage, and inverter output in one energy management solution. Specification Details Brand Itel Product Type Hybrid Solar Inverter Rated Output Power 6,600W (6.6kW) Maximum PV Input Power 13,200W MPPT Channels Dual MPPT MPPT Voltage Range 60V–425V Maximum Solar Charging Current 140A Battery Voltage 48V DC Compatible Battery Types Lithium-Ion / Lead-Acid Protection Rating IP66 Application Residential and Light Commercial Solar Systems
