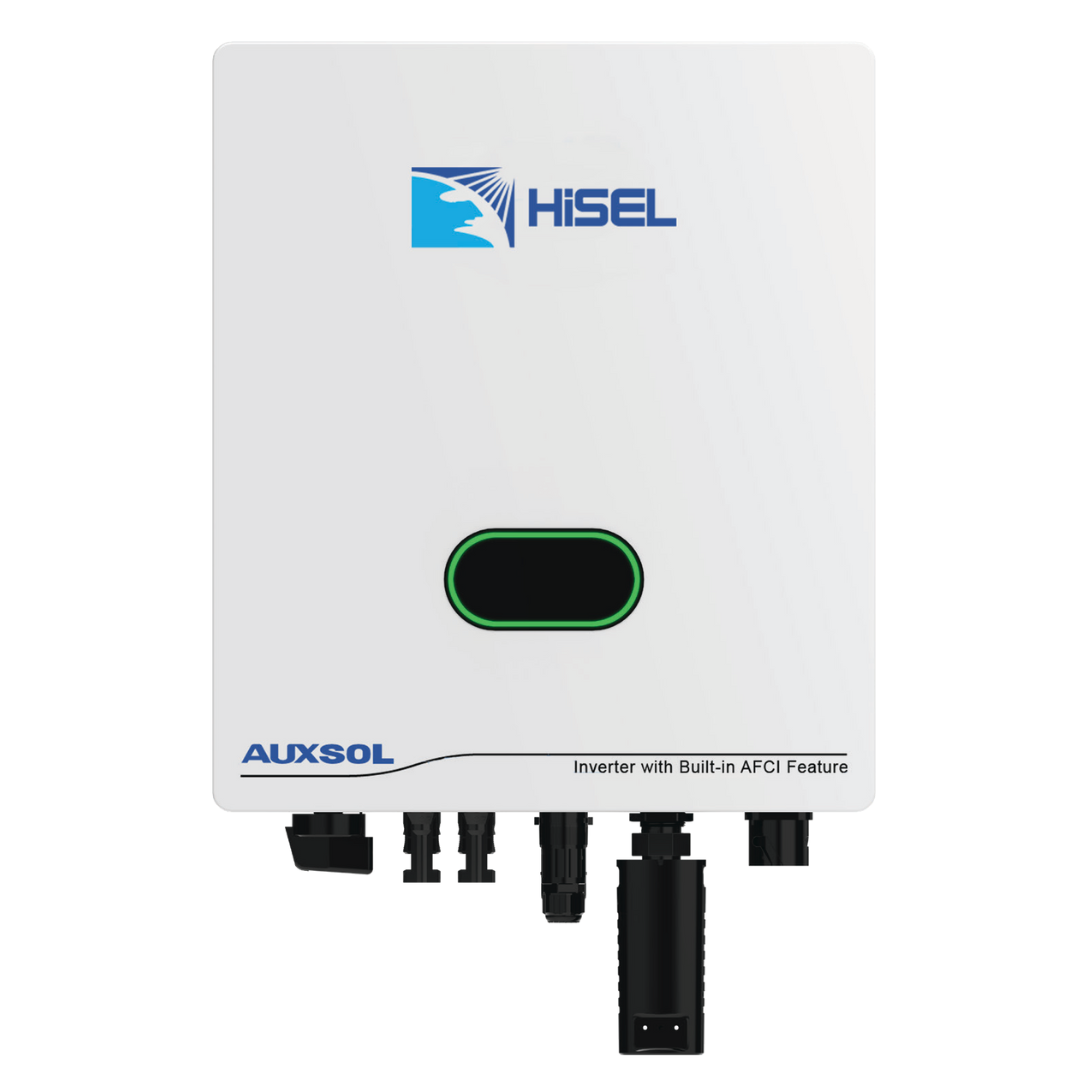

Hisel AUXSOL ASN-10TL-G2 10KW – PV 15KW Three Phase On-Grid Solar Inverter

Description

ASN-10TL-G2 10KW Solar Inverter – High Efficiency & Smart Monitoring The ASN-10TL-G2 is a high-performance grid-tied solar inverter designed to deliver up to 10KW output power. Equipped with advanced MPPT technology, it ensures maximum energy extraction from solar panels. With an impressive 98.60% max efficiency and 99.80% MPPT efficiency, this inverter is an excellent choice for both industrial and residential applications. RS485, Wi-Fi, and 4G communication options allow for remote monitoring and easy system management. Key Features High Efficiency Performance – Delivers 98.60% max efficiency and 99.80% MPPT efficiency for maximum solar power utilization. Dual MPPT System – Features 140-1000V MPPT voltage range with 2 independent MPPT trackers, optimizing power output from multiple solar panel strings. Wide Grid Compatibility – Supports 220V / 380V / 230V / 400V (3-phase) grid voltage, making it adaptable for various regional standards. Smart Communication & Monitoring – Integrated RS485, Bluetooth, and optional WIFI & 4G connectivity for real-time monitoring and remote access. Robust Protection System – Equipped with DC reverse-polarity, short-circuit, surge protection, temperature protection, and anti-islanding protection to ensure safe operation. Natural Cooling Design – Features a transformer less structure with natural cooling to prevent overheating, ensuring long-term reliability. IP66 Waterproof Rating – Built to withstand harsh outdoor conditions, providing reliable performance in all environments. Anti-Backflow & AFCI Protection – Includes anti-backflow prevention and arc-fault circuit protection to maintain grid stability and enhance electrical safety. ASN-10TL-G2 Solar Inverter – Technical Specifications Category Specification Input DC Max. Input Power 15KW Max. Input Voltage 1100V Rated Voltage 620V Start-up Voltage 140V MPPT Voltage Range 140 – 1000V Max. Input Current 20A / 20A Max. Short Circuit Current 25A / 25A MPPT Number 2 Max. Input Strings Number 2 Output AC Rated Output Power 10KW Max. Output Power 11KW Rated Grid Voltage 220V / 380V / 230V / 400V (3/N/PE) Grid Voltage Range 170V – 280V (Phase voltage), 320V – 480V (Line voltage) Rated Grid Frequency 50Hz / 60Hz Rated Grid Output Current 14.4A Max. Output Current 15.9A Power Factor 1 (0.8 leading, 0.8 lagging) THD (Total Harmonic Distortion) <3% Efficiency Max. Efficiency 98.60% EU Efficiency 98.30% MPPT Efficiency 99.80% Protection Integrated DC Switch Yes DC Reverse-Polarity Protection Yes Anti-Islanding Protection Yes Short Circuit Protection Yes Output Over Current Protection Yes DC Surge Protection Type II AC Surge Protection Type II Insulation Impedance Detection Yes Ground Fault Monitoring Yes Residual Leakage Current Detection Yes Temperature Protection Yes AC Over Voltage Protection Yes DC Over Current Protection Yes Integrated AFCI (DC Arc-Fault Circuit Protection) Yes Anti-Backflow Protection Yes Strings Monitoring Yes I/V Curve Scanning Optional General Data Dimensions (WHD) 339 × 394 × 175.5mm Weight 13Kg Self-Consumption (Night) <1W Operating Temperature Range -30°C to +60°C Cooling Concept Natural Cooling Max. Operation Altitude 4000m (Derating above 3000m) Relative Humidity 0-100% Ingress Protection IP66 Topology Structure Transformer less Grid Connection Standard IEC/EN 62109-1/2, EN IEC 61000-6-1/2/3/4, EN IEC 61000-3-11, EN 61000-3-12 Safety/EMC Standard NB/T32004, EN 50549-1, CGC/GF 035-2013, VDE-AR-N 4105 Type of DC Terminal MC4 Connector Type of AC Terminal Quick Connection Plug Display & Communication Display LED + Bluetooth + APP Communication Interface RS485, Optional: WIFI/4G The ASN-10TL-G2 is a smart, efficient, and reliable inverter, making it an ideal solution for residential and commercial solar power systems, ensuring long-term durability with advanced monitoring capabilities.
