Green Energy Bold Series 4.2KW PV6500 Solar Inverter 12V/24V Auto Battery selection | Dual Voltage Pure Sine Wave MPPT 6500W

Description

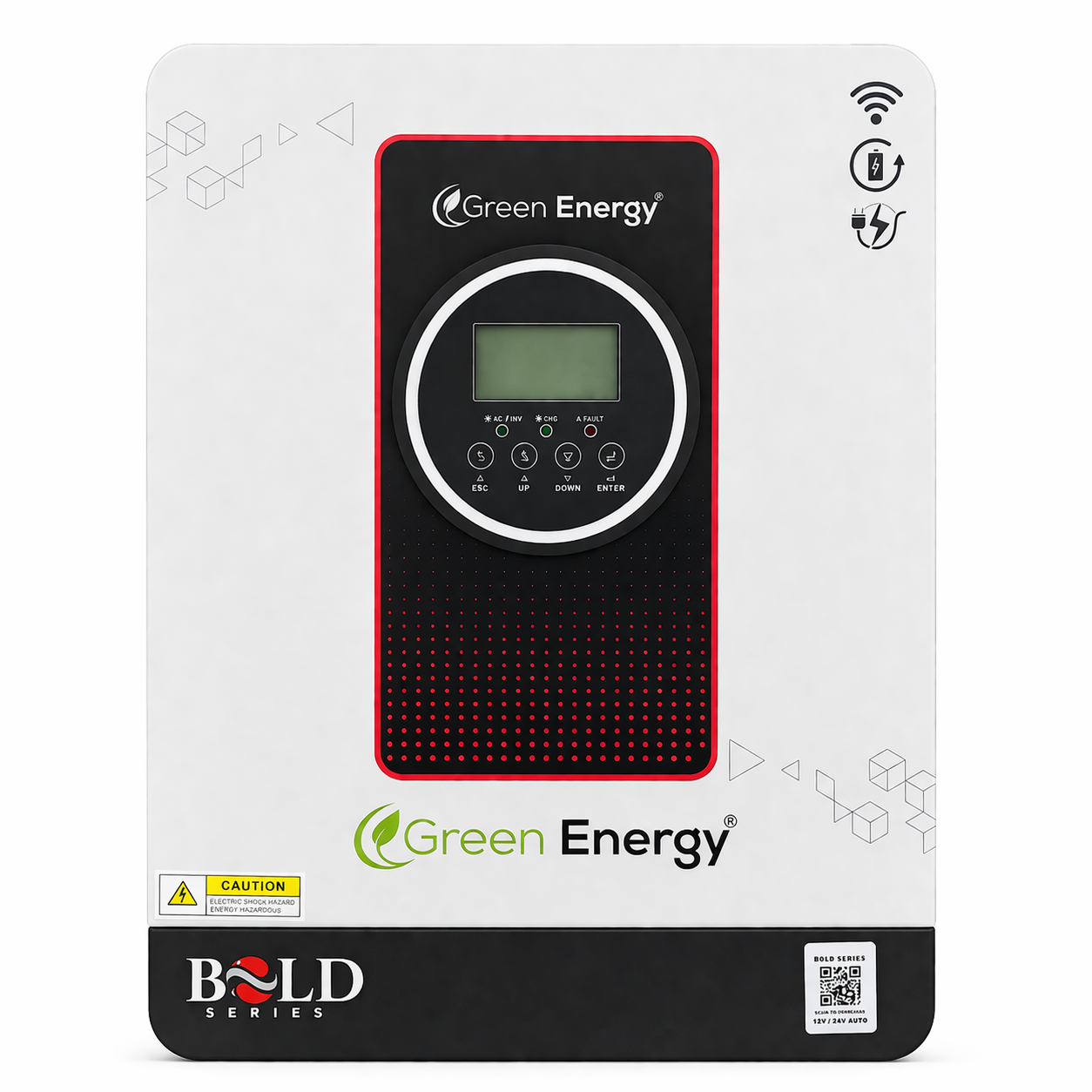

Upgrade your power system with the Green Energy Bold Series 4.2KW PV6500 Solar Inverter, a next-generation dual voltage (12V/24V) hybrid inverter designed for maximum flexibility and performance. Built with advanced MPPT technology and intelligent energy management, this inverter ensures reliable power for homes, offices, and solar setups. This innovative inverter (2025 model) supports dual operation on a single unit, delivering 2300W at 12V and 4200W at 24V, making it ideal for users with varying load requirements. Key Features: Dual Voltage Support (12V/24V) – One inverter for multiple power needs Rated Power Output – 2300W (12V) / 4200W (24V) Advanced MPPT Technology – 55V–500VDC operating range with 6500W PV capacity Hybrid Power Source – Solar + Utility grid can power loads simultaneously Pure Sine Wave Output – Safe for sensitive electronics and appliances Smart Charging System – Adjustable charging current via LCD Auto Restart Function – Automatically resumes when grid power returns Complete Protection – Overload, short circuit, over-temperature protection BMS Communication (RS485) – Optimized battery performance Optional WiFi & Bluetooth Monitoring – Remote and real-time tracking Cold Start Function – Reliable performance in low temperatures Built-in Anti-Dust Kit – Designed for harsh environments RGB Lighting (Optional) – Modern and stylish design Parameter Value Rated Output Power 2300VA/2300W, 4200VA/4200W Frequency Range 50Hz/60Hz (Auto Sensing) Voltage 230VAC Selectable Voltage Range 230VAC ±5% AC Voltage Regulation (Batt. Mode) 230VAC ±5% Surge Power 6500W Efficiency (Peak) 94% Transfer Time 10ms (PC), 20ms (Home Appliances) Input Voltage Range 170~280VAC (For Personal Computers) Battery Voltage 12V / 24V Floating Charge Voltage 13.5V / 27V Overcharge Protection 13.5V / 27V Maximum Charge Current 100A Maximum PV Array Power 6500W Maximum PV Array Open Circuit Voltage 500VDC MPPT Range (Operating Voltage) 55~500VDC Dimensions (H×W×D) 405×305×108 mm Depth × Width × Height 482×371×176 mm Net Weight 6.7 kg Humidity 5%–95% (Non-condensing) Operating Temperature -10°C to +50°C Storage Temperature -15°C to +60°C Noise Level <45 dB Communication Interface RS485 / RS232 / BMS / WiFi / Bluetooth Expansion Slot Interface Lithium Battery BMS Card, WiFi Card, Dry Contact Parallel Interface No Parallel Connect Standards & Certifications EN-IEC60335-1, EN-IEC60335-2-29, IEC62109-1
