CNC RT18PV-63 1500V DC Fuse – Overload & Short Circuit Protection

Description

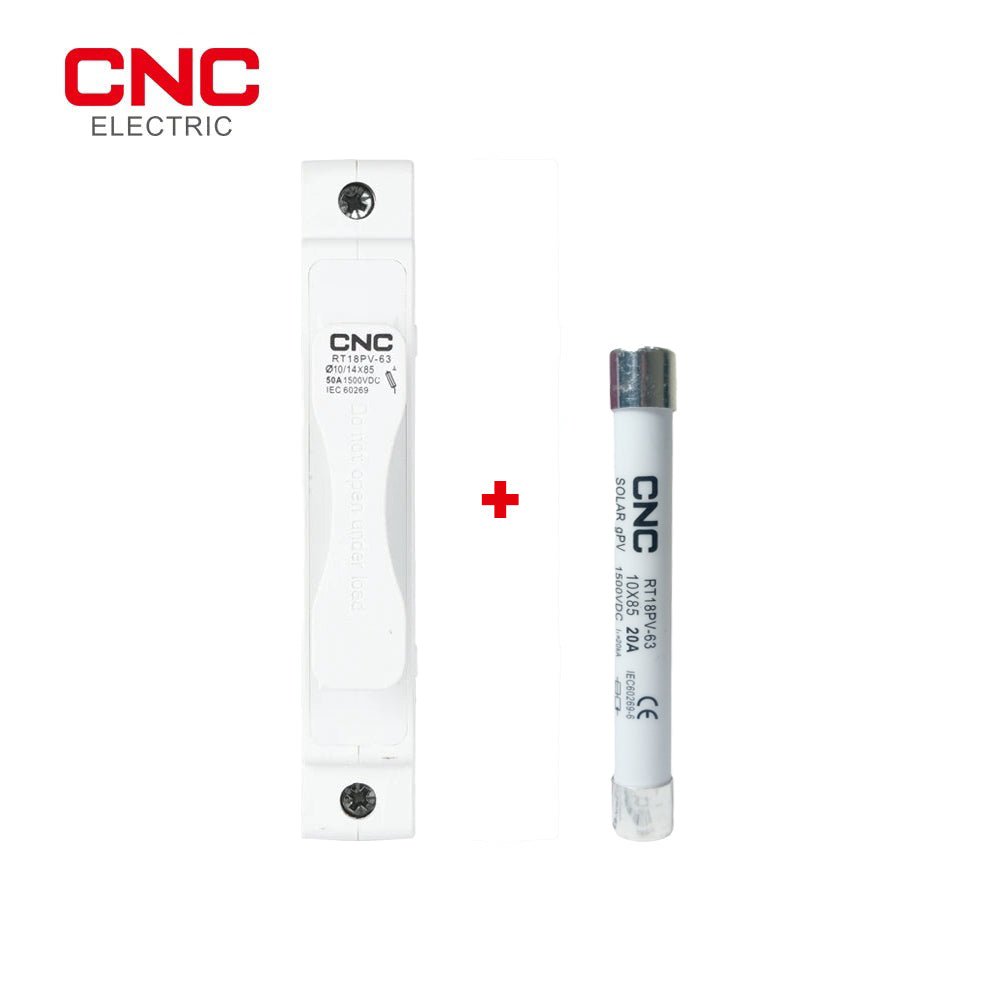

The CNC RT18PV-63 Fuse Holder is engineered for high-performance solar photovoltaic systems, delivering reliable overload and short-circuit protection. With a rated voltage of up to 1500V DC, it ensures safe and efficient operation in both residential and commercial PV installations. Key Features: Rated Voltage: 1500V DC Class of Operation: gPV Dimensions: Ø10/14 × 85 mm Wide Wire Range: #18–4 AWG (1–16 mm²) Supports 75° or 90° Cu wire Compact, durable, and easy to install Ideal for solar PV protection Safety Note: Do not open under load. Use only with photovoltaic fuses.
