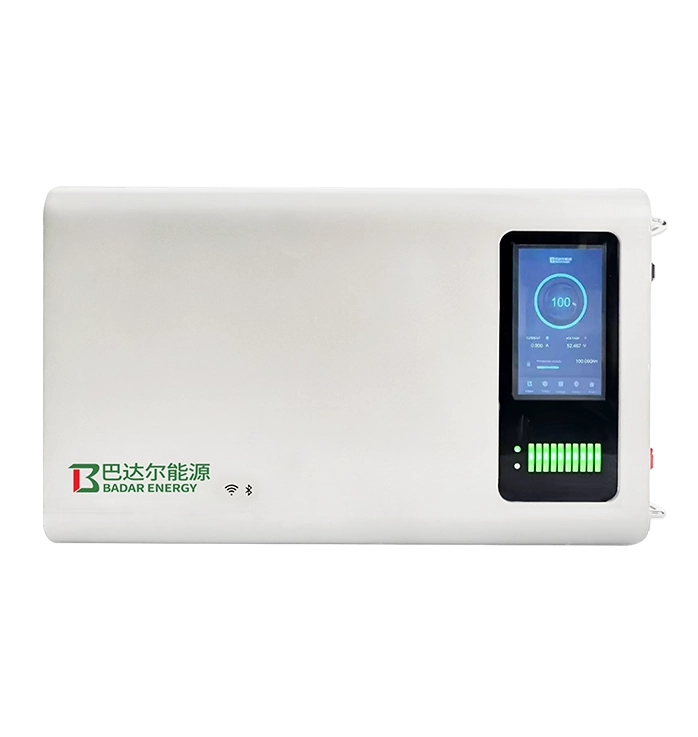

BadarEnergy Tiger Energy Pro 51.2V 100AH-W 5.12 kWh Lithium Battery

Description

The Tiger Pro 5.12 kWh lithium battery (51.2V 100Ah) is engineered for high safety and reliable energy storage using advanced LiFePO₄ technology. With a 6000-cycle lifespan and a fireproof, wall-mounted design, it offers compact efficiency for both home and commercial use. Equipped with a smart BMS supporting CAN and RS485 communication, it ensures stable operation and easy system integration. The built-in Bluetooth (PACE EX) feature enables real-time monitoring through mobile devices. Tiger Pro provides complete protection against voltage, current, temperature, and short-circuit issues, making it a durable and secure choice for modern energy storage. Features: Battery Type: LiFePO₄ (LFP) with 6000 cycles @ 80% DoD. Rated Energy: 5.12 kWh (51.2V 100Ah). Wall-mounted, compact, and fire-resistant design. Smart protection: over/under voltage, current, temperature, discharge, and short-circuit. Integrated BMS with CAN and RS485 communication. Bluetooth (PACE EX) monitoring via mobile app. Operating temperature: -20°C to 55°C (discharge). Extensible — connect up to 15 batteries in parallel. Model No. 51.2V100AH-W Battery Type LiFePO₄ / LFP Configuration 16S1P Rated Energy 5.12 kWh Nominal Voltage 51.2 V Working Voltage 40 V to 58.4 V Capacity 100 Ah Recommended Charge Current ≤ 50 A Max. Charge 100 AH (1C) Max. Discharge 100 AH (1C) Cycle Life >= 6 000 cycles @ 80 % DoD Extensibility Up to 15 batteries in parallel Storage Temperature –20 °C to +30 °C Communication CAN, RS485 Dimensions (L×W×H) 680.5*402.5*142 mm Wi-Fi PACE EX Bluetooth PACE EX Weight 42 ± 0.5 kg Operating Temperature Discharging: –20 °C ~ 55 °C Mounting Wall
